1 SFP port (Empty) to (4) RJ-48 [1.5 km/0.9 mi.]

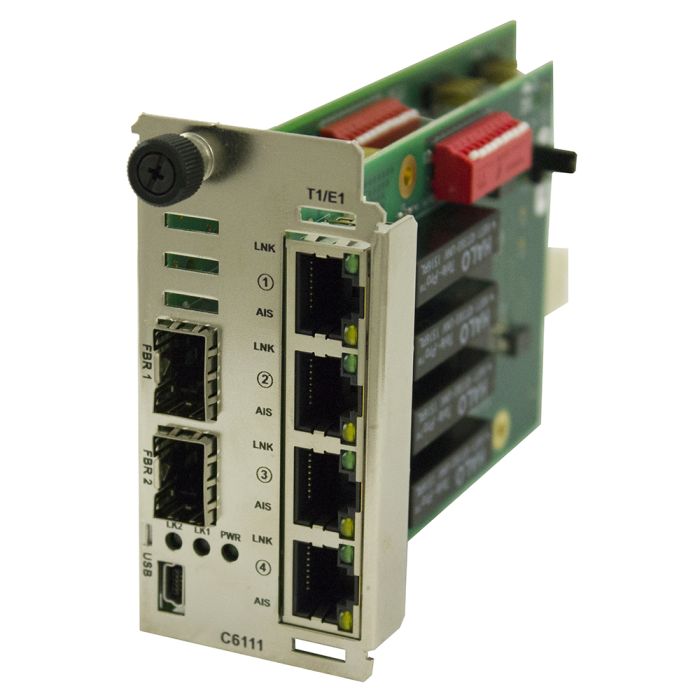

The ION C6110 is a managed T1/E1/J1 mux media converter module that provides a solution for those users that need to extend multiple T1/E1/J1 connections over fiber. The C6110 includes (4) RJ-48 ports and (1) fiber port. The device offers support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The C6110 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6110 in a remote location.

Features

• (4) RJ-48 copper interfaces
• (1) fiber interface (SFP)
• Loopback via test set
• Local and remote loopbacks
• LEDs for device status and troubleshooting
• Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
• Access to complete status and configuration on local and remote device
• Remote firmware upgrade
• Remote management
• Must be used in pairs
