*1 SFP port (Empty)to (4) RJ-48 [1.5 km/0.9 mi.] plus 10/100Base-TX (RJ-45) [100m]

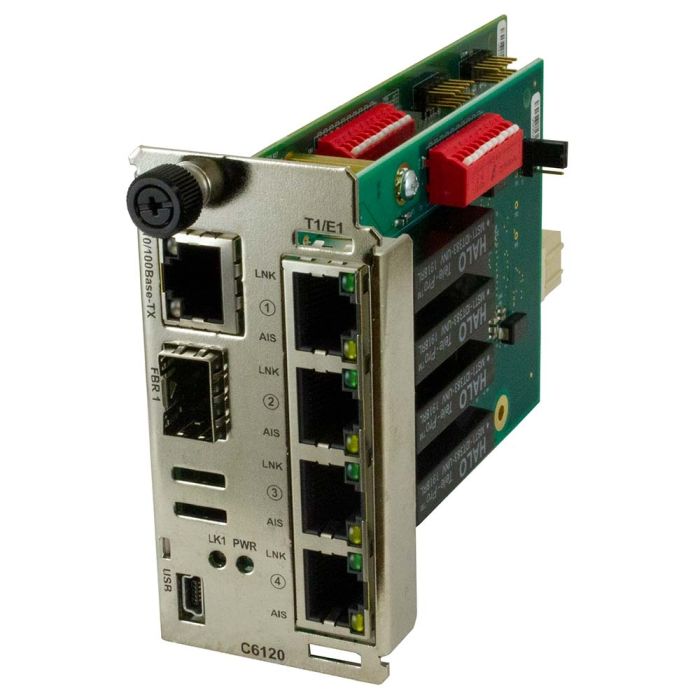

The ION C6120 is a managed T1/E1/J1 mux media converter module that provides a solution for those users that need to extend multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The C6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location.

Features

• (4) RJ-48 copper interfaces
• (1) fiber interface (fixed or SFP)
• (1) RJ-45 10/100Mbps Ethernet port
• Auto-MDI/MDIX
• Pause (Flow Control on Ethernet port)
• Loopback via test set
• Local and remote loopbacks
• LEDs for device status and troubleshooting
• Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
• Access to complete status and configuration on local and remote device
• Remote firmware upgrade
• Remote management
• Must be used in pairs
