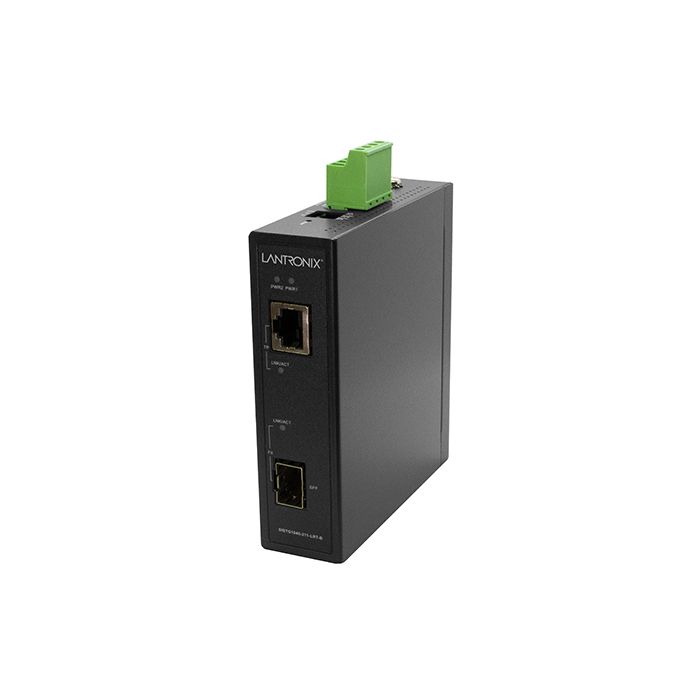

10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 100/1000Base-X SFP slot (empty)

Artikelnummer

SISTG1040-211-LRT-B

Zzgl. 19% USt.

Lieferzeit

5-10 Werktage

The SISTG-211 Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.

It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Lantronix’ hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.

Features

Auto-Negotiation
Auto-MDI/MDIX
Link Pass Through
Extended operating temperature (-40°C to 75°C)
Dual, Redundant, 12-48 VDC Power Inputs
Reverse Polarity Power Input Protection
Overload Current Protection
DIN Rail Mounting Brackets Included
Class 1, Div 2 Certified
Jumbo Frame: 9K bytes

Zum Ende der Bildergalerie springen

Zum Anfang der Bildergalerie springen

Details

Standards

IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z

Data Rate

Copper: 10/100/1000 Mbps
Fiber: 1000 Mbps
SFP: 100/1000 Mbps

Dip Switches

1: SFP – Enable Auto Negotiation for the SFP / Force Gigabit speed for SFP port
2: Copper – Enable Auto Negotiation for the copper / Force Gigabit speed for copper
3: LPT – Enable/Disable Link Pass Through

Status LEDs

PWR (Power): ON = powered correctly
LNK/ ACT (ports 1-2): ON = Link;
FLASHING = data transmitting

Dimensions

Width: 1.2” [30 mm]
Depth: 3.86” [98 mm]
Height: 4.25” [108 mm]

Power Consumption

3.4 Watts (max)

Power Input

12 to 48 VDC, 0.2A-0.5A, redundant inputs with reverse polarity protection

Ingress Protection

IP30

Environment

Operating: -40°C to +75°C
Storage: -40°C to 85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight

0.97 lbs. [0.44 kg]

MTBF

SISTG1013-211-LRT-B & SISTG1014-211-LRT-B
1,639,500 Hrs. Temp: 25.00° C.
251,499 Hrs. Temp: 75.00° C.
SISTG1040-211-LRT-B
1,628,265 Hrs. Temp: 25.00° C.
248,741 Hrs. Temp: 75.00° C.

Certifications

UL Class 1, Div 2 for hazardous environments CISPR/EN55022 Class A, FCC Class A, CE Mark, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Warranty

5 Years
