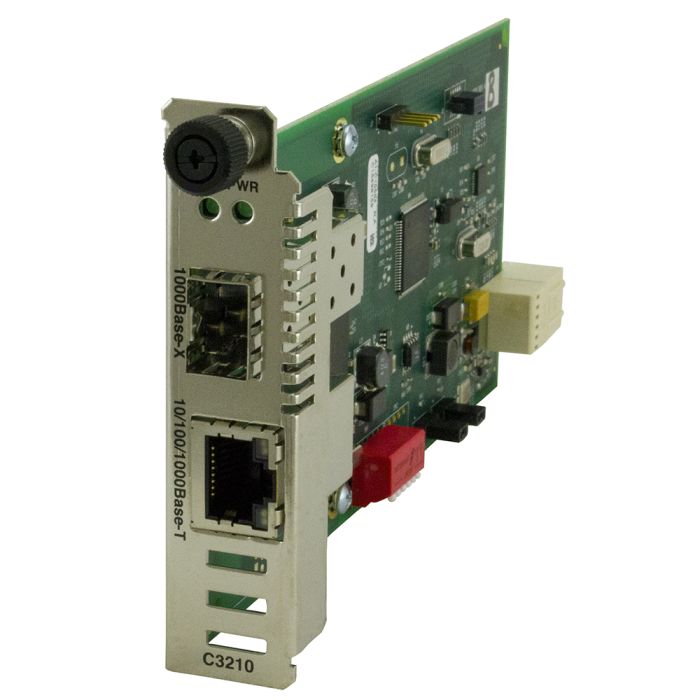

10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-SX 850nm multimode (LC) via SFP [62.5/125 μm fiber: 220 m/722 ft [50/125 μm fiber: 550 m/1804 ft.] Link Budget: 8.0 dB

Standards

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1p
• IEEE 802.1Q

Data Rate

• 10/100/1000 Mbps; Layer 2

Max Frame Size

• 10,240 Bytes (jumbo frame support)
• 1,632 Bytes when linked to an xGFEB10xx-120

Switch

• SW1: TP Auto-Negotiation
• SW2: TP Speed
• SW3: TP Duplex
• SW4: Link Pass Through
• SW5: Fiber Duplex
• SW6: Unused

Jumper

• Hardware/Software mode, Auto-MDI/MDIX

Status LEDs

• PWR (Power): ON = Connection to powered backplane
• LACT (Fiber Link): ON=Fiber link, Blinking=activity
• UTP Duplex/Link: Orange=half duplex link,
• Blinking = half duplex activity, Green = Full duplex link,
• Blinking =Full duplex activity,
• Off = 10 Mbps operation (or no link),
• Orange = 100 Mbps operation, Green = 1000 Mbps operation

Dimensions

• Width: 0.86” [22 mm]
• Depth: 6.5” [165 mm]
• Height: 3.4” [86 mm]

Power Consumption

• 3.6 Watts, 300mA @ 12 VDC

Environment

• Environment specs are dependent on the chassis chosen
• Operating: 0°C to 50°C
• Humidity: 5% to 95% (non-condensing)
• Altitude: 0 – 10,000 ft.

Weight

• 1 lb. [0.45 kg]

MTBF

• Greater than 250,000 hours (MIL-HDBK-217F)
• Greater than 667,500 hours (Bellcore)

Certifications

• CISPR/EN55022 Class A, EN55024, EN61000,
• FCC Class A, CE Mark

Warranty

• Lifetime
