10/100/1000Base-T (RJ-45) [100 m] to (1) 100/1000Base-X SFP Slot (empty)

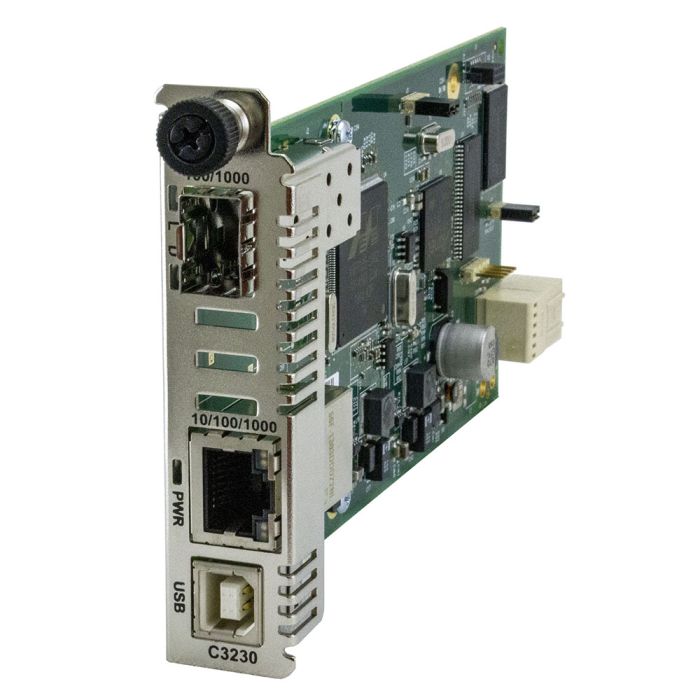

The ION C3230 is a managed multi-service Network Interface Device (NID) module that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to provide SLA-assurance and advanced fault management while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the C3230 can be managed individually via an IP address or it can be managed by the ION Management Module when installed in a managed ION chassis. With advanced features like IEEE 802.1ag Service OAM, IEEE 802.3ah Link OAM, ITU Y.1731 Performance Monitoring, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the C3230 provides various methods for secure delivery of business Ethernet and mobile backhaul deployments.

Features

• MEF 9, 14 and 21 certified
• IEEE 802.3ah Link OAM
• ITU Y.1731
• IEEE 802.1ag Service OAM
• 10K Jumbo Frame Support
• Two selectable Remote Management modes:
  • IP-Based Remote Management
  • In-Band (remote device managed by local peer)
• Auto-MDI/MDIX
• Auto-Negotiation
• Pause
• Link Pass Through
• Far-End-Fault (FEF)
• Remote Loopback
• Field Upgradeable Firmware
• IEEE 802.1p QoS packet classification
• IPv4 IP TOS, DiffServ and IPv6 traffic class QoS classification
• IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs
• DHCP client
• SNTP
• TFTP
• RADIUS client
• RMON counters for each port
• Bandwidth profiling
• DMI Optical Management
• Cable diagnostic function for copper ports
• SSH
• Telnet
• Command Line Interface (CLI)
• Web management
• Focal Point Management
• SNMP v1, v2c, and v3
• USB port for basic setup
• Management VLAN
