10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (LC) [2 km/1.2 mi.] Link Budget: 11.0 dB

Artikelnummer
M/E-ISW-FX-02(MMLC)
Zzgl. 19% USt.
Lieferzeit
5-10 Werktage

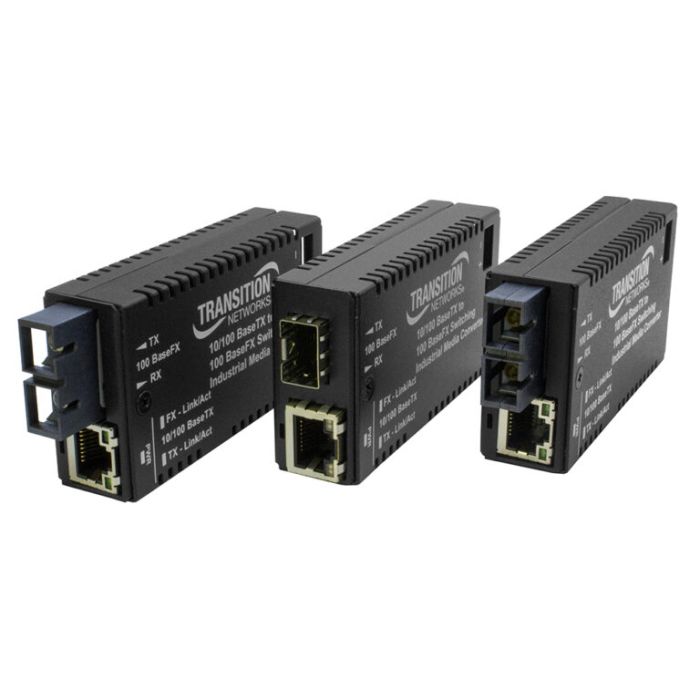

The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.

Features

  • Unit and Port LEDs provide quick status
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Link Pass Through
  • Active Link Pass Through on SFP version
  • Automatic Link Restoration
  • Far-End-Fault (FEF)
  • DC and AC power inputs via terminal block
    • If the voltage of your power source doesn’t match the device input power, external power supplies are available
  • Includes barrel connector pig-tail cable
  • Overload Current Protection
  • Reverse Polarity Protection
  • Easily integrate fiber into industrial, hardened, or outdoor locations to reach devices at the edge of the network
  • Small mechanical size allows use in enclosures with space constraints
  • No configuration required
  • Available with LC, ST or SC fiber interfaces and available for multimode or single mode fiber
  • Multiple mounting options:
    • DIN Rail clip and velcro included
    • Wall mount bracket sold separately

    Standards

    • IEEE 802.3

    Max Frame Size

    • 2,046 bytes (for all excpet SFP version)
    • 10,240 bytes (for SFP version)

    Status LEDs

    • PWR (Power): (below RJ-45)
    • FX-Link/Act (Fiber Link/Activity): (Upper Left on RJ-45)
    • ON = Link; Flashing = Activity
    • TX-Link/Act (Copper Link/Activity): (Upper Right on RJ-45)
    • ON = Link; Flashing = Activity

    Dimensions

    • Width: 1.8” [46 mm]
    • Depth: 3.3” [85 mm]
    • Height: 0.85” [22 mm]

    Power Consumption

    • 2.5 Watts

    Power Input

    • 2-pin Terminal Block
    • Unit accepts 12-48 VDC and 24-36 VAC ± 10%
    • Overload Current Protection
    • Reverse Polarity Protection

    Ingress Protection

    • IP20

    Environment

    • Operating: -40°C to 75°C
    • Storage: -40°C to 85°C
    • Humidity: 5% to 95% (non-condensing)
    • Altitude: 0 – 10,000 ft.

    Weight

    • 2 lbs. [0.90 kg]

    MTBF

    • 41,680 hours (MIL‐HDBK‐217F)
    • 114,580 hours (Bellcore7 V5.0)

    Certifications

    • FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark

    Warranty

    • Lifetime
