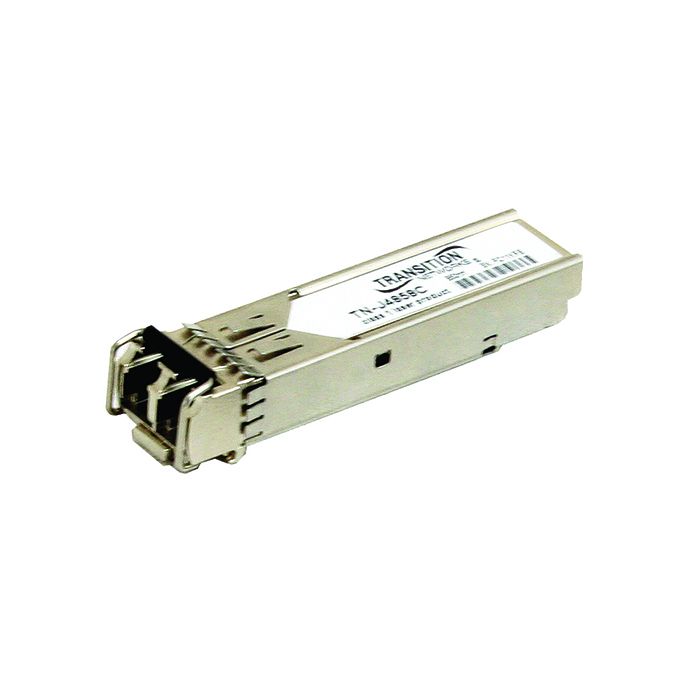

1000Base-SX 850nm (LC) multimode [62.5/125 μm fiber: 220 m/722 ft.] [50/125 μm fiber: 550 m/1804 ft.] Link Budget: 9.0 dB
Artikelnummer
TN-J4858C
Applications include: Gigabit Ethernet Switches and Routers, Fiber Channel Switch Infrastructure, xDSL Applications, and Metro Edge Switching.
Features
- Hot-Pluggable SFP Optical Transceiver with Duplex LC Connector
- Compliant with SFP Multi-Sourcing Agreement (MSA)
- Compliant with 1000Base-SX (TN-J4858C Module Only)
- Compliant with 1000Base-LX (TN-J4859C Module Only)
- IEEE 802.3z
- IEEE 802.3
- Width: 0.52” [13 mm]
- Depth: 2.2” [56 mm]
- Height: 0.33” [8 mm]
- 3.3V
- Operating: 0°C to 70°C
- Storage: -40°C to 85°C
- IEC-60825, FDA 21, CFR 1040.10 and 1040.11
- Lifetime
Standards
Dimensions
Power Input
Environment
Certifications
Warranty
| Lieferzeit | 5-10 Werktage |
|---|---|
| Systeme | Lantronix / Transition Networks |
| Kategorie | Optics |
