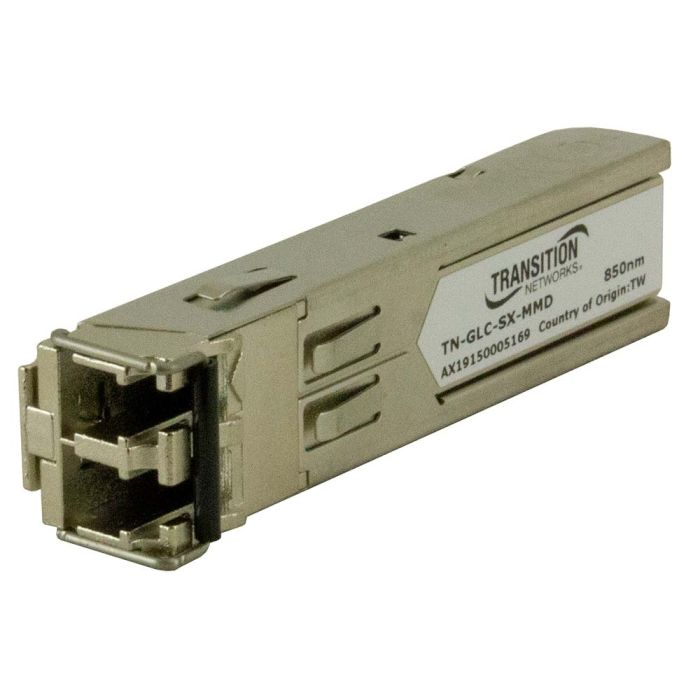

1000Base-SX 850nm multimode (LC) with DMI [62.5/125 μm: 220m/722ft.] [50/125μm: 550m/1804 ft.] Link Budget: 8.5 dB

Standards

• IEEE 802.3

Dimensions

• Width: 0.52” [13 mm]
• Depth: 2.18” [55 mm]
• Height: 0.33” [8 mm]

Power Consumption

• 0.66 Watts

Power Input

• 3.3V

Environment

• Operating: 0°C to 70°C
• Operating: -40°C to 85°C (TN-GLC-SX-MM-xx-RGD)
• Storage: -40°C to 85°C

Certifications

• IEC-60825, FDA 21, CFR 1040.10 and 1040.11; UL Listed (specific SKUs only)

Warranty

• Lifetime
