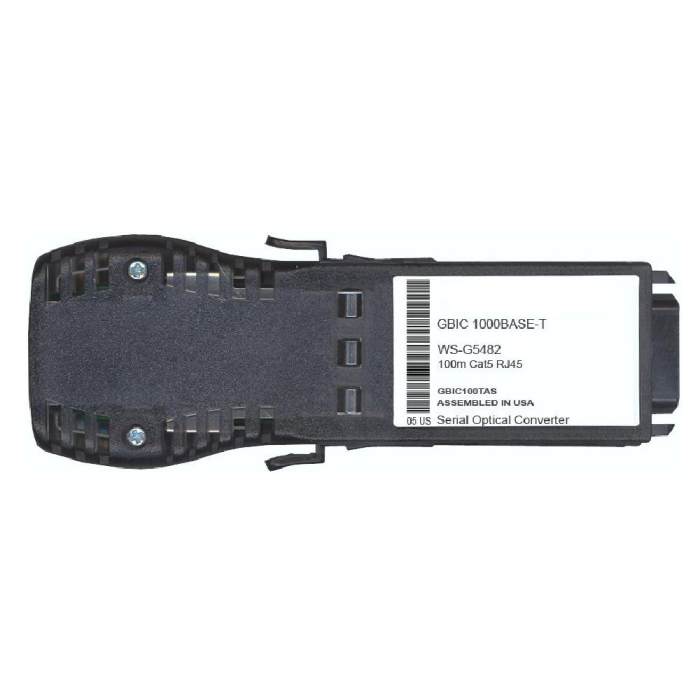

1000BASE-T GBIC Modul RJ-45 Datenreichweite 100m Cisco kompatibel

Artikelnummer
TDE-WS-G5482
Lieferzeit
5-10 Werktage
1000BASE-T GBIC Modul RJ-45 Datenreichweite 100m Cisco kompatibel

Features
• Bis zu 1.25GBd bidirektionale Datenverbindungen
• Konform mit IEEE 802.3z, IEEE 802.3ab konform
• Konform mit GBIC Spezifikation Revision 5.5
• SCA-2 Host-Anschluss
• Unter Spannung ansteckbar
• Unterstützt 1000BASE-T Vollduplex standard Betriebsmodus
• RJ-45 Stecker
• Auto-sense MDI/MDIX
• Stromversorgung 3.3V/5V
• RoHS konform
• Betriebstemperaturbereich: 0°C bis 70°C.

Anwendungen
• 1.25GBd Gigabit Ethernet

Allgemeine Spezifikation
ParameterSymbolMin.Typ.Max.UnitRemarks
Data Rate DR     1000 Mb/sec IEEE 802.3
Cable Length CL     100 m Category 5 UTP
Bit Error Rate BER     10−12
Operating Temperature TOP 0   70 °C Case temperature
Storage Temperature TSTO -40   85 °C Ambient temperature
Supply Current IS   310 375 mA For electrical power interface
Input Voltage Vcc 3.15 5 5.5 V Referenced to GND. For electrical power interface
Maximum Voltage VMAX     6 V For electrical power interface
Surge Current Isurge     30 mA Hot Plug above steady state current. For electrical power interface
Elektrische High Speed Verbindung Host-GBIC
ParameterSymbolMin.Typ.Max.UnitRemarks
Differential Input Voltage VINDIFF 500   2000 mV Differential peak-peak
Differential Output Voltage VOUTDIFF 370   2000 mV Differential peak-peak
Rise/Fall Time (20% − 80%) TR-F   250   psec
Tx Input impedance ZIN   75   ohm Single ended
Rx Output impedance ZOUT   75   ohm Single ended
Elektrische High Speed Verbindungsübertragung Line-GBIC
ParameterSymbolTyp.UnitRemarks
Line Frequency FL 125 MHz 5-level encoding
Tx Output Impedance − Differential ZOUT_T 100 Ohm For all frequencies between 1MHz and 125MHz.
Rx Input Impedance − Differential ZIN_RX 100 Ohm For all frequencies between 1MHz and 125MHz.
Elektrisches Low Speed Signal
ParameterSymbolMin.Max.UnitRemarks
GBIC Output Low VOL 0 0.5 V External 4.7k-10k ohm pull-up to host_VCC.
GBIC Output High VOH Host_VCC – 0.5 Host_VCC + 0.3 V External 4.7k-10k ohm pull-up to host_VCC.
GBIC Input Low VIL 0 0.8 V External 4.7k-10k ohm pull-up to host_VCC.
GBIC Input High VIEH 2 VCC + 0.3 V External 4.7k-10k ohm pull-up to host_VCC.

Mehr Informationen
Lieferzeit 5-10 Werktage
Hersteller tde
Systeme GBIC-, SFP-, XFP-, XENPAK-Transceiver
Kategorie GBIC Module
