100Mbps to 2.5Gbps fiber repeater with two open SFP slots, any-rate to same-rate. ION Chassis Card media converter

Artikelnummer
C3100-4040
Zzgl. 19% USt.
Lieferzeit
5-10 Werktage
Zur Wunschliste hinzufügen

The ION C3100 is a fiber to fiber media converter module. It is protocol independent and supports data rates from 100Mbps to 2.5Gbps through two open SFP slots. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode fiber conversion or it can be used to provide wavelength conversion in CWDM applications. The ION C3100 is a manageable device when installed in a managed ION chassis.

Features

  • Protocol Transparent
  • Supports data rates from 100Mbps to 2.5Gbps
  • Any-rate to same-rate conversion
  • SFP to SFP Fiber Repeater
  • Specific wavelength CWDM Transponder
  • Supported protocols: Fast Ethernet, Gigabit Ethernet, SONET (OC-3/12/48), 1 & 2 Gig Fiber Channel, 2.5G InfiniBand, FDDI, ESCON/SBCON
  • DMI, Digital diagnostics statistics available through ION Management Module
  • Link Pass Through
  • Automatic Link Restoration

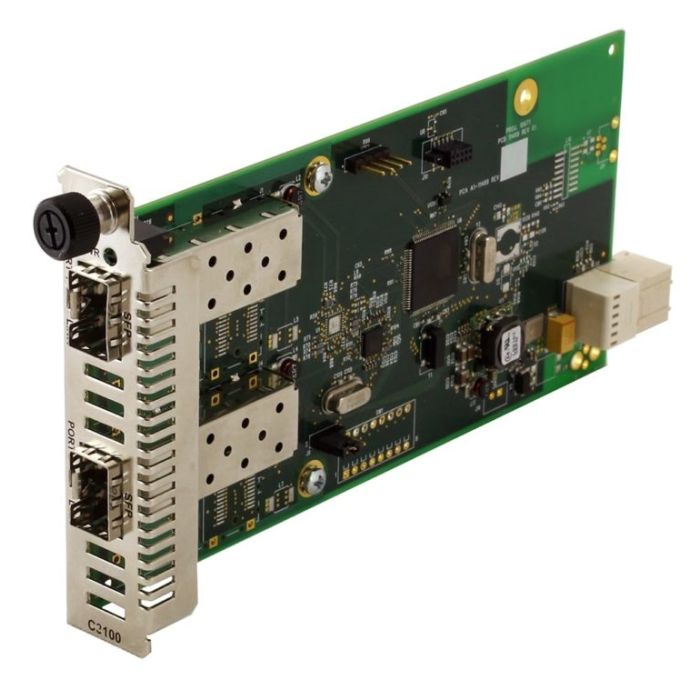

main product photo

    Standards

    • Multi-Source Agreement (MSA)
    • Small Form Factor Pluggable (SFP)

    Data Rate

    • Protocol Independent
    • 100 Mbps to 2.5 Gbps

    Max Frame Size

    • 16384 bytes Jumbo Frames Supported

    Status LEDs

    • PWR ON (Green) = Power
    • Port 1 Link ON = Fiber Signal Detected
    • Port 2 Link ON = Fiber Signal Detected

    Dimensions

    • Width: 0.86” [22 mm]
    • Depth: 6.5” [165 mm]
    • Height: 3.4” [86 mm]

    Power Consumption

    • 2-3 Watts, based on the SFP modules used

    Power Supply

    • External AC/DC required: 12VDC

    Environment

    • Environment specs are dependent on the chassis chosen
    • Operating: 0°C to 50°C
    • Humidity: 5% to 95% (non-condensing)
    • Altitude: 0 – 10,000 ft.

    Weight

    • 1 lb. [0.45 kg]

    MTBF

    • Greater than 250,000 hours (MIL-HDBK-217F)
    • Greater than 687,000 hours (Bellcore)

    Certifications

    • FCC Class A, EN55022 Class A, EN55024, CE Mark

    Warranty

    • Lifetime

Mehr Informationen
Lieferzeit 5-10 Werktage
Systeme Lantronix / Transition Networks
Kategorie Media Converters
Medienobjekte
Bauform Slide-in Media Converter
Protokoll Fast Ethernet, Gigabit Ethernet
Konverter Typ Fiber to Fiber
Carrier Ethernet No
