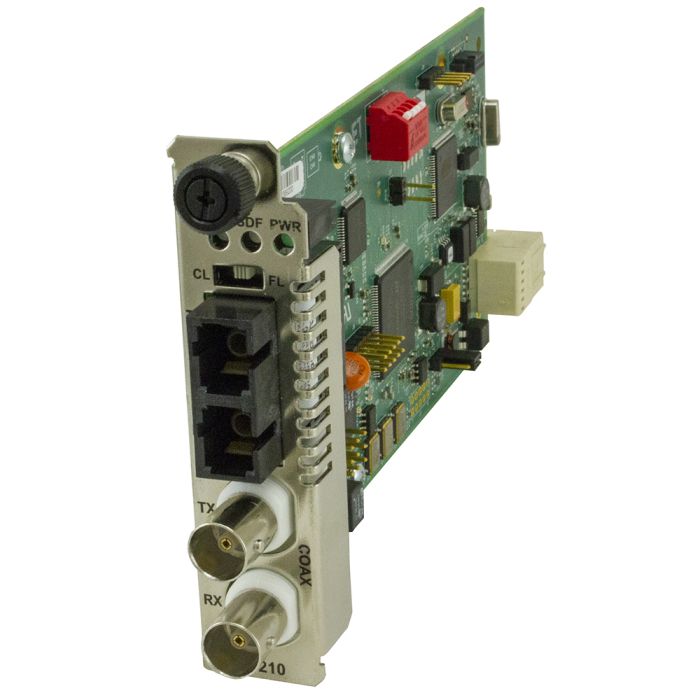

(2) Coax (BNC) to 1300nm multimode (SC) [2 km/ 1.2 mi.] Link Budget: 11.0 dB

Artikelnummer
C6210-3013
Zzgl. 19% USt.
Lieferzeit
5-10 Werktage

The ION C6210 is a managed media converter module that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The C6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The C6210 DS3-T3/E3 converters must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6210 in a remote location.

Features

  • AIS (Alarm Indication Signal)
  • Coax Line Build Out
  • Switch selectable for DS3/T3 or E3
  • Remote firmware upgrade
  • Loopback – Coax and Fiber
  • LEDs for immediate visual status
  • Supports dual or single fiber
  • Supports multimode and single mode fiber at a variety of distances
  • Supports CWDM SFPs
  • SNMP management when used with ION chassis and management module
  • Remote stand-alone can be managed by local peer
  • Must be used in pairs

    Standards

    • ANSI
    • ITU-TS
    • ETSI
    • G.823 for jitter tolerance
    • G.755 for loss of signal

    Connectors

    • Coax Connectors 75 ohm coax
    • Fiber Connectors SFP: LC connector Uses standard 100Base-X/OC-3
    • SFP Fixed Optics: ST or SC connector

    Data Rate

    • DS3/T3 = 44.7 Mbps; E3 = 34.4 Mbps

    Status LEDs

    • Power, Coax link status, coax loopback status, AIS on coax link; Fiber link status, fiber loopback status, AIS on fiber link

    Dimensions

    • Width: 0.86” [22 mm]
    • Depth: 6.5” [165 mm]
    • Height: 3.4” [86 mm]

    Power Consumption

    • 2.5 Watts

    Environment

    • Environment specs are dependent on the chassis chosen
    • Operating: 0°C to 50°C
    • Humidity: 5% to 95% (non-condensing)
    • Altitude: 0 – 10,000 ft.

    Weight

    • 1 lb. [0.45 kg]

    MTBF

    • Greater than 250,000 hours (MIL-HDBD-217F)
    • Greater than 687,000 hours (Bellcore)

    Certifications

    • CISPR/EN55022 Class A, FCC Class A, CE Mark

    Warranty

    • Lifetime

Mehr Informationen
Lieferzeit 5-10 Werktage
Systeme Lantronix / Transition Networks
Kategorie Media Converters
Medienobjekte
Bauform Slide-in Media Converter
Protokoll T1
Konverter Typ Copper to Fiber
Carrier Ethernet No
