(2) Coax (BNC) to 1310nm single mode (SC) [20 km/12.4 mi.] Link Budget: 16.0 dB

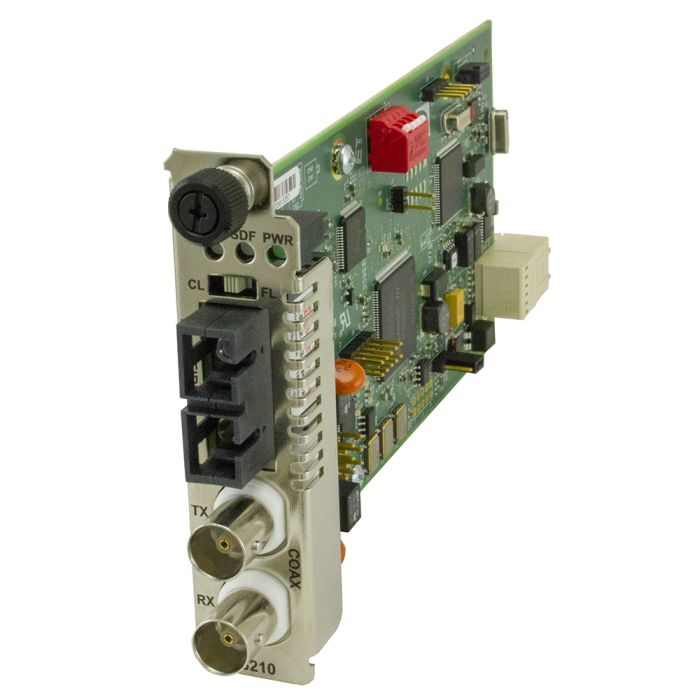

The ION C6210 is a managed media converter module that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The C6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The C6210 DS3-T3/E3 converters must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6210 in a remote location.

Features

• AIS (Alarm Indication Signal)
• Coax Line Build Out
• Switch selectable for DS3/T3 or E3
• Remote firmware upgrade
• Loopback – Coax and Fiber
• LEDs for immediate visual status
• Supports dual or single fiber
• Supports multimode and single mode fiber at a variety of distances
• Supports CWDM SFPs
• SNMP management when used with ION chassis and management module
• Remote stand-alone can be managed by local peer
• Must be used in pairs
