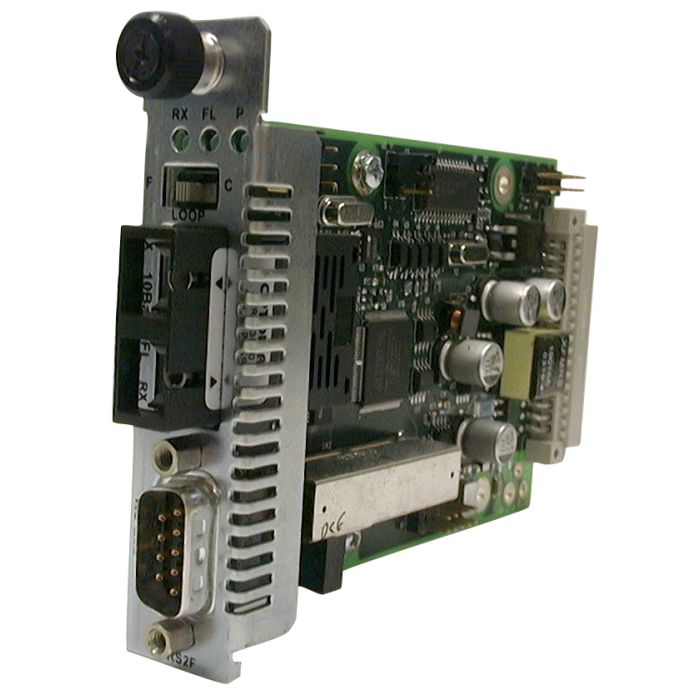

Point System™ RS232 Remotely Managed Media Converter Module, RS232 Copper to Fiber

Artikelnummer
CRS2F3115-100
Zzgl. 19% USt.
Lieferzeit
5-10 Werktage

DB-9 [15 m/49 ft.]
to 1310nm single mode (SC)
[40 km/24.9 mi.] Link Budget: 26.0 dB

Description

The CRS2F Series stand-alone serial RS232 to fiber converters allow you to extend the distance between serial connections with the use of fiber optic cable. These full-featured stand-alone media converters transmit the full complement of RS232 flow control/handshaking signals optically and supports full or half-duplex asynchronous data transmission at speeds up to 115 Kbps. Link a remote terminal to a host computer: Connect multiple devices, such as security scanners, POS devices, remote terminals and building access/alarming systems to a host computer. Ideal for campus or business environments where remote devices can be networked in a point-to-point configuration where distances are greater than the 15 meter limitation of conventional copper serial cables.

Features

  • Read/write access to remote stand-alone unit
  • Local or Remote Loopback on copper and fiber
  • DTE/DCE switch for easy installation with straight-through cabling
  • Full/Half-duplex asynchronous transmission at speeds up to 115 Kbps
  • Supports the following flow control signaling:
  1. DCD – Data Carrier Detect
  2. RXD – Receive Data
  3. TXD – Transmit Data
  4. DTR – Data Terminal Ready
  5. SG – Signal Ground
  6. DSR – Data Set Ready
  7. RTS – Request To Send
  8. CTS – Clear To Send
  • Field Upgradeable Firmware Management

Management Features

  • Report Converter status to Chassis management software:
    • Local Fiber Link status
    • Local/Remote
    • Hardware/Software mode
    • Local/Remote Loopback
    • Local/Remote DTE/DCE mode
    • Local/Remote link status
  • Write operation includes:
    • Local Loopback
    • Remote Loopback
  • Can be used with any Point System™ Chassis

Show product on manufacturers website: https://www.lantronix.com/products/

Specifications

Standards EIA/TIA-574
EIA/TIA RS-232E
Data Rate 115 Kbps
Switch DTE/DCE: Select appropriate position
Loopback: Norm = normal operation;
Loop = Fiber and copper loopback
Status LEDs P (Power): Lit for normal operation
RX: Steady = Copper Link
Flashing = Rx Data
FL: Steady = Fiber Link
Flashing = Loopback mode
Dimensions Width: 0.86″ [22 mm]
Depth: 5" [127 mm]
Height: 3.4″ [86 mm]
Power Consumption 5.0 Watts
Environment Environment specs are dependent on the chassis chosen
Operating: 0°C to 50°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.
Weight 1 lb. [0.45 kg]
Compliance CISPR22/EN55022 Class A + EN55024, EN60950 Class A
FCC Class A, CE Mark
Warranty Lifetime

Mehr Informationen
Lieferzeit 5-10 Werktage
Systeme Lantronix / Transition Networks
Medienobjekte
Bauform Slide-in Media Converter
Protokoll Serial
Konverter Typ Copper to Fiber
Carrier Ethernet No
