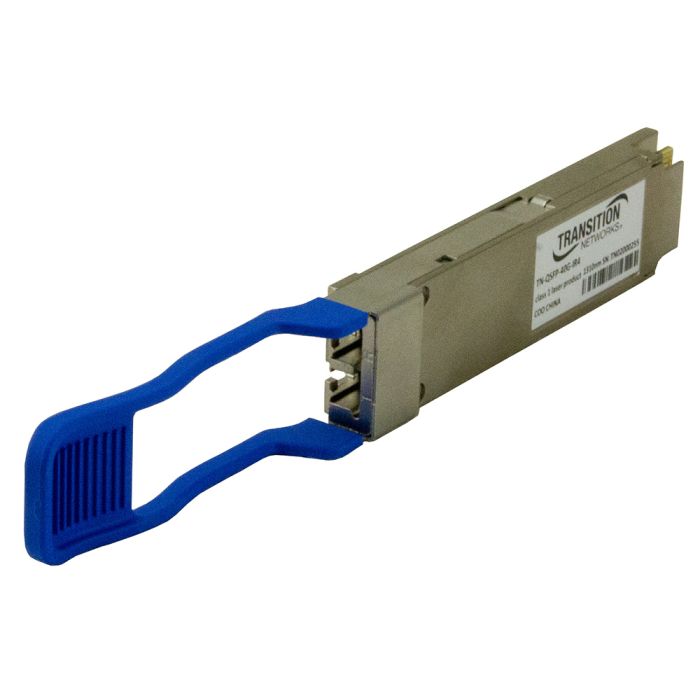

QSFP+ 40GBase-IR4, 1271nm, 1291nm, 1311nm, 1331nm, single mode (LC) [2km/1.24mi.] with DMI Link Budget: 6.7 dB

Lantronix  TN-QSFP-40G series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G transceivers are Cisco Compliant* and are designed for bi-directional serial-optical data communication such as 40G Ethernet.

Applications include: 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.

Features

• High capacity: up to 44.4 Gbps per module
• Compliant with SFF 8436 QSFP+ MSA
• Single +3.3 V Power Supply
• RoHS Compliant
• Digital Diagnostic Monitoring
• Low Power Dissipation : SR4 < 1.5 Watts, all other modules < 3.5w
• 40GBase-SR4: 4 lanes, up to 11.1Gbps per lane, Standard MPO connector
• 40GBase-LR4 & 40GBase-LR4-3: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
• 40GBase-SR-BD: two transmit/receive channels, 20Gbps each channel, 850 – 900nm wavelength range, Duplex LC connector
• 40GBase-IR4: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
