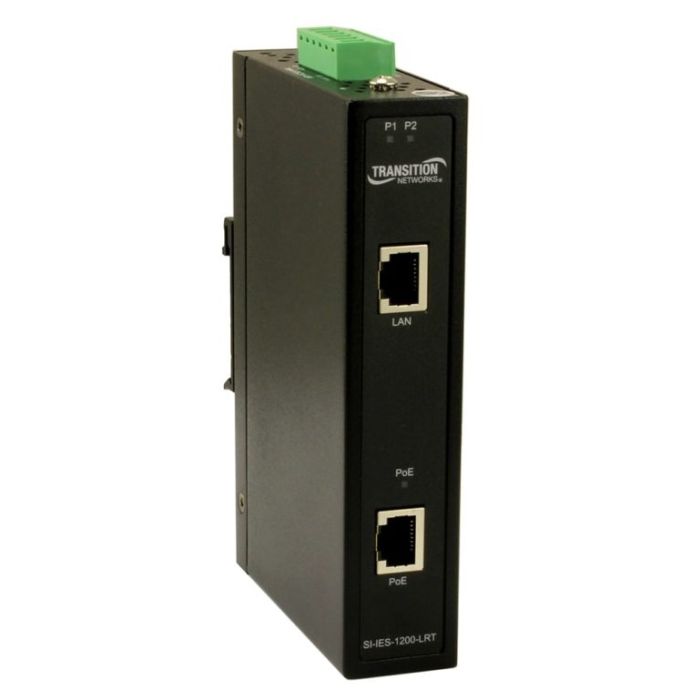

(1) 10/100/1000Base-T port + (1) 10/100/1000Base-T PoE+ port

Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3at
• IEEE 802.3af

Connectors

• (1) DATA IN RJ-45 Ethernet Port
• (1) DATA OUT PoE+ RJ-45 Ethernet
• Port 30 Watts

Data Rate

• 10/100/1000 Mbps

Status LEDs

• PWR1 (Power): ON=primary power connected
• PWR2 (Power): ON=backup power connected

Dimensions

• Width: 1.2” [30 mm]
• Depth: 3.7” [95 mm]
• Height: 5.5” [140 mm]

Power Consumption

• 3.53 Watts (No PoE)
• 33.36 Watts (1 port PoE)

Power Input

• 24-48VDC

Ingress Protection

• IP30

Environment

• Operating: -40°C to 75°C
• Storage: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Altitude: 0 – 10,000 ft.

Weight

• 1.3 lbs. [0.59 kg]

MTBF

• 8,371,781 hours Bellcore Ground Benign, Controlled; Temp. 30°C
• 4,185, 891 hours Bellcore Ground Fixed, Uncontrolled; Temp. 30°C

Certifications

• Safety: UL508
• FCC Class A, CE Mark, EN61000-4, EN61000-6-2, EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6(CS) EN61000-4-8 (Magnetic Field), EN61000-4-8 (Magnetic Field), IEC60068-2-32 (Free fall), IEC60068-2-6 (Vibration)

Warranty

• Lifetime
