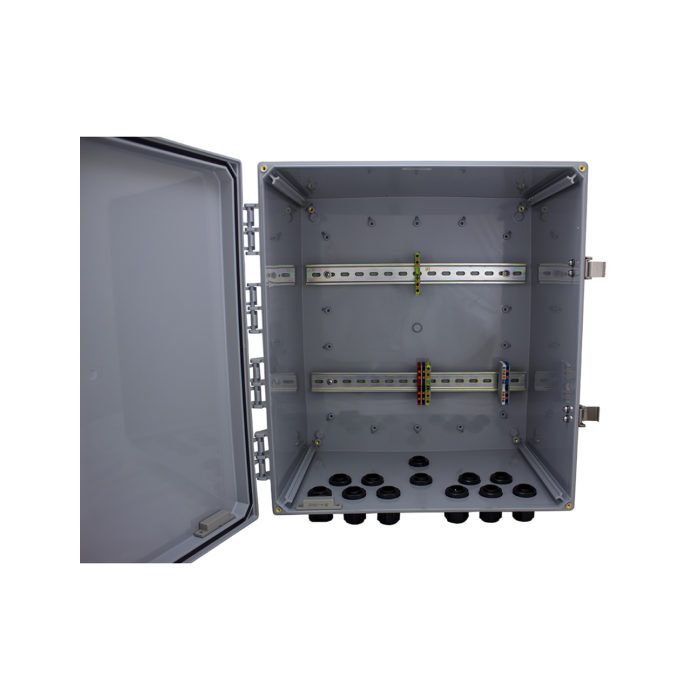

Outdoor cabinet with vent, (2) DIN rails, (2) ground terminal blocks and (1) each low voltage DC positive and negative and AC mains line and neutral/line terminal block, plus (1) power and (10) data wire glands

Dimensions

• Width: 16.91” [429.51 mm]
• Depth: 11.5” [292.1 mm]
• Height: 19.69” [500.13 mm]

Weight

• 15.15 lbs. [6.87 kg]

DIN Rails

• (2) 35mm DIN (1.39″ x 15″)

Instrumented Dart Impact @ 73°F

• 565 in lb

Deflection Temperature @ 264 psi

• 270°F

Modulus of Elasticity

• 34 ksi

Tensile Strength Temperature Range

• -40 to 265°F

Environment

• Operating: -40° to +70°C (inside enclosure)
  External Operating: -40°C to +50°C

Flame Rating – UL 94

• 5VA

Outdoor UV Exposure – UL

• F1

Certifications

• Consists of UL compliant components
• Cabinet UL 50/cUL listed File E229365/E207562; NEMA 4X/IP66
• Vent plug UL/cUL recognized File E330194; approved for use in IP65/67/68 applications
• Wire glands UL/cUL recognized File E51579;
• approved for NEMA 4, 4X, 6 and 6P applications
• Ground terminal blocks UL/cUL recognized
• File E 60425
