(16) 10/100Base-TX (RJ-45) ports [100 m/328 ft.] + (2) 10/100/1000Base-T (RJ-45) or (2) 100/1000Base-X SFP combo ports

Artikelnummer

SISTM1040-262D-LRT-B

Zzgl. 19% USt.

Lieferzeit

5-10 Werktage

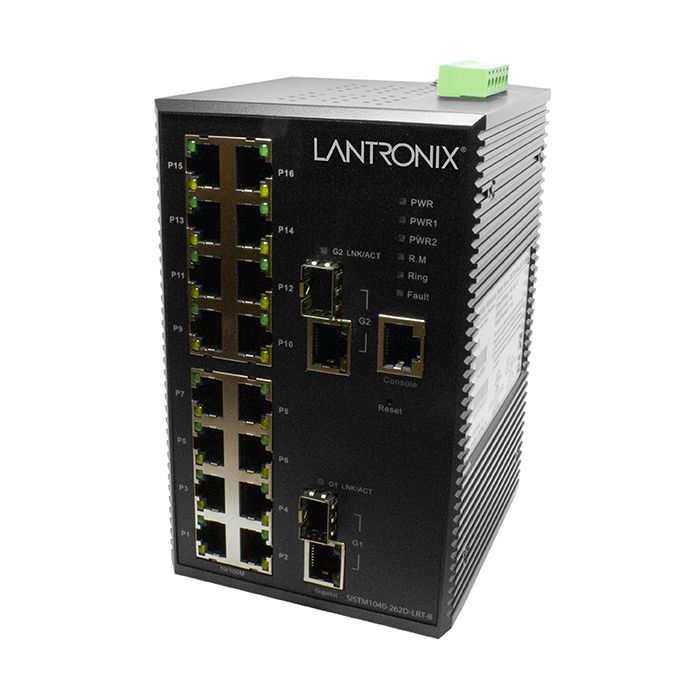

The SISTM1040-262D-LRT-B switch is a (16) port managed hardened switch with (2) copper ports or (2) dual speed SFP slots supporting Fast Ethernet to Gigabit Ethernet speeds. The (2) SFP slots provide the ultimate flexibility by allowing SFP fiber connections at different speeds and at a variety of communication distances. The ports can also be used in a redundant ring for maximum network reliability.

Features

Auto-Negotiation
Auto-MDI/MDIX
Combo SFP ports support 100/1000Base-X SFPs
Extended Operating Temperature (-40°C to +70°C)
Dry Contact Relay Alarm Output
Dual, Redundant, Auto-Sensing 12-48 VDC Power Inputs
Overload Current Protection
DIN Rail Mounting and Wall Mount Brackets Included
PTP- Precision Timing Protocol
RMON
Port Based VLAN (4096)
IEEE 802.1Q Tag VLAN
GVRP
Port Trunk with LACP QoS (Quality of Service)
IEEE 802.1p Class of Service, Per port provides priority queues
Port Based, Tag Based and Type of Service Priority
Port Security: MAC address entries/filter
- IP Security: IP address security management to prevent unauthorized intruder
- Login Security: IEEE 802.1X/RADIUS Authentication IGMP Query mode for Multi-Media Application
- IGMP Multicast groups 1024
- Support 0-ring and multi-ring, STP, RSTP, MSTP
- Provide redundant backup feature and recovery time below 20ms.
SNMP v1 v2c, v3/Web/Telnet/CLI
DHCP Client/DHCP Server
TFTP Firmware Upgrade
TFTP Configuration Backup/Restore
IPv4/IPv6 dual-stac

Zum Ende der Bildergalerie springen

Zum Anfang der Bildergalerie springen

Details

Standards

IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.1X
IEEE 802.3ad
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.3z
IEEE 802.3x
IEEE 802.1W
IEEE 802.1S
IEEE 802.1AB

Status LEDs

PWR 1 (Power): ON = primary power connected
PWR 2 (Power): ON = backup power connected
FAULT: ON = power input failure on PWR1 or PWR2
LNK/ACT: ON = Link; FLASHING = data transmitting
FDX/COL: ON = Full-duplex mode;
FLASHING = collisions occurring
RM: Ring Master

Dimensions

Width: 3.8” [96.4 mm]
Depth: 4.27” [108.5 mm]
Height: 6.06” [154 mm]

Power Consumption

12 Watts

Power Input

12 to 48 VDC; redundant inputs with over current protection

Ingress Protection

IP30

Environment

Operating: -40°C to +70°C
Storage: -40°C to +85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight

3.85 lbs. [1.75 kg]

Certifications

Safety: UL EN60950-1, Class 1/Div 2, Groups A, B, C, D, ATEX, FCC Class A, CE Mark, CE EN61000-4-2, CE EN61000-4-3, CE EN-61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-11
Environmental: IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Warranty

Lifetime
