(4) 10/100/1000Base-T PoE+ ports + (2) 10/100/1000Base-T RJ-45 ports + (2) 100/1000Base-X SFP slots (Din Rail Bracket included)

Artikelnummer

SISPM1040-362-LRT

Zzgl. 19% USt.

Lieferzeit

5-10 Werktage

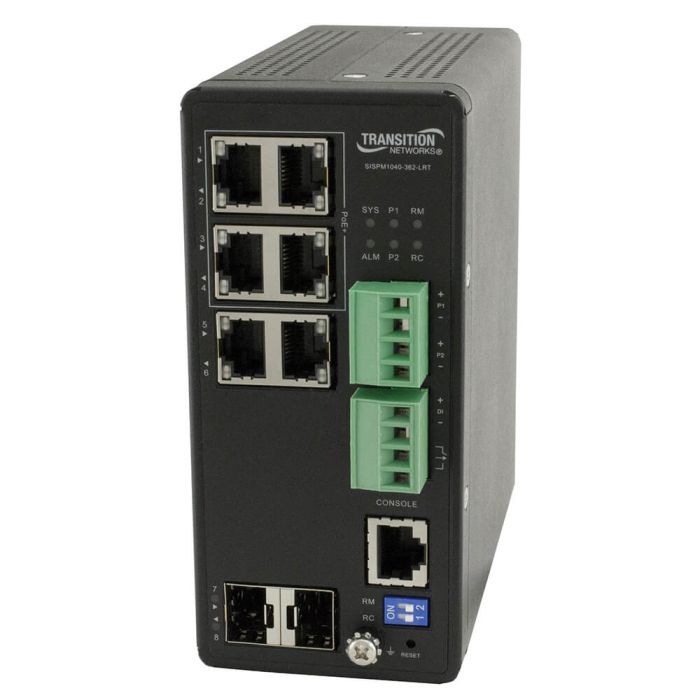

The SISPM1040-362-LRT is a managed PoE+ switch suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all (4) PoE ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network.

Lantronix’ hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.

Features

Store-and-Forward Architecture with 16 Gbps Switching Bandwidth
Supports Jumbo frames up to 9.6K Bytes
Ring Protections
- Industry standard G.8032 Ethernet Ring Protection Switching (ERPS)
- Support G.8031 Ethernet Linear Protection Switching (EPS)
- Rapid Ring with recovery time less than 20ms
Radius, TACACS+, User Authentication
Supports LLDP Protocol
HTTPS/SSH v1/v2 Network Security
Temperature Detection and Alarm
Support HW Watchdog to resume operation from CPU hang up
IEEE 1588 v2 PTP
Port Mirroring
Power-over-Ethernet
- Port Configuration
- Auto Power Reset (APR)
- DHCP per Port
- PoE Scheduling
- Complies to IEEE 802.3at, IEEE 802.3af
IEEE 802.3ad LACP, up to 6 groups and up to 4 ports per group
Up to 4K VLAN groups, Port based, IEEE 802.1Q tag, Q-in-Q, MAC based VLAN, Management VLAN, Private VLAN Edge, Voice VLAN, GVRP
ACL – up to 256 entries, Drop or Rate limiting based on: Source and Destinations MAC, VLAN ID and IP address, protocol, port, DSCP/ IP precedence, TCP/UDP source and destination ports, IEEE 802.1p priority, Ethernet type, ICMP packets and TCP flag
Loop Protection
Quality of Service
- Supports 8 hardware queues
- Scheduling: strict priority and WRR, Queue assignment based on DSCP and class of service
- Classification: Port based, IEEE 802.1p VLAN priority based, IPV4/IPV6 precedence / DSCP based, DiffServ, Classification and re-marking ACLs
- Rate limiting: Ingress policer, Engress shaping and rate control, per port
IPv4/IPv6 dual stacks and static routing
Port Security, IP Source Guard
System Alarms via SYSLOG / SNMP Trap
DHCP Client/Server, DHCP relay, Option 82
Port based network access control (IEEE 802.1X)
Web / SNMP v1,v2c,v3 / Telnet / CLI management
Media Redundancy Protocol (MRP)

Device Management System (DMS)

Graphical Monitoring – Topology view, Floor view, Map view
Traffic Monitoring
Troubleshooting – Network diagnostic, protection mechanism, performance and link management

Zum Ende der Bildergalerie springen

Zum Anfang der Bildergalerie springen

Details

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3ad
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1s
IEEE 802.1X
IEEE 802.1AB
IEEE 802.1ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3ah
IEEE 802.1ag
IEEE 802.1D
IEEE 1588 v2
ITU-T Y.1731
ITU-T G.8031
ITU-T G.8032
IEC62439-2

MAC Address

Backplane

16Gbps

Serial Console

RJ-45

Status LEDs

System, Power1, Ring Master, Coupling, Power2, Alarm, Port Status

Dimensions

Width: 2.4” [62 mm]
Depth: 5.3″ [135 mm]
Height: 5.4” [130 mm]

DIP Switch (2-pin)

Rapid Ring setting

Reset button

Reset the switch, Restore Factory default

Digital output (relay)

24VDC/1A

Digital input

Level 0 (Low): 0V to 6V
Level 1 (High): 10V to 24V

Power Input

48 – 57VDC; redundant inputs with reverse polarity protection and overload current protection

Power Consumption Without PoE

8.2 Watts

Power-over-Ethernet

120 Watts PoE budget
30 Watts output on all 4 PoE+ ports

Ingress Protection

IP30

Environment

Operating: -40°C to +75°C
Storage: -40°C to 85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight

2 lbs. [0.9 kg]

MTBF

100,874 hours

Certifications

EMI: CE, FCC Part 15, EN61000-4-2, EN61000-4-3, EN-61000-4-4, EN61000- 4-5, EN61000-4-6, EN61000-4-8, IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), NEMA TS-2
Safety: IEC62368-1/EN62368-1, UL Class 1/Div 2
