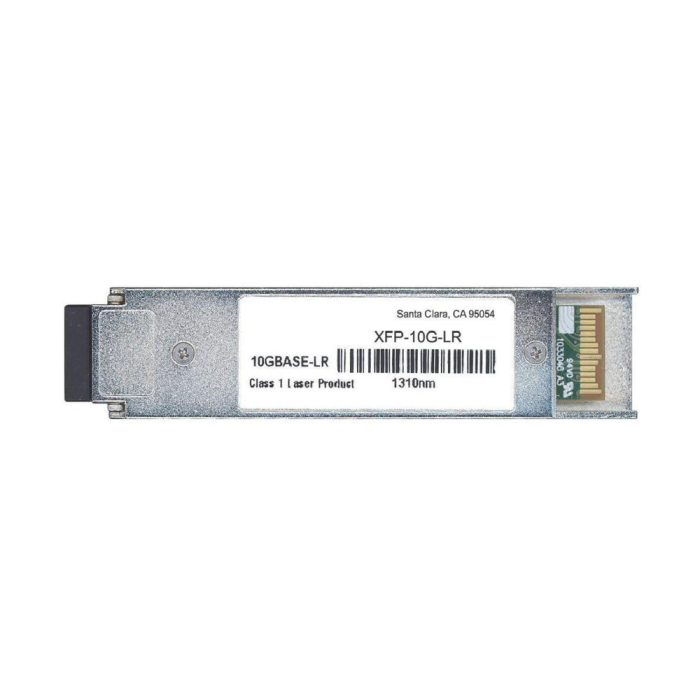

10GBASE-LR XFP Modul SM LC 10km Datenreichweite (1310nm) Cisco kompatibel
Artikelnummer
TDE-XFP-10G-LR
10GBASE-LR XFP Modul SM LC 10km Datenreichweite (1310nm) Cisco kompatibel
Features
• Unterstützt 9.95Gb/s bis 11.1Gb/s Bitraten
• Einrastender XFP Footprint
• Maximale Verbindungslänge von 10km
• Ungekühlter 1310nm EML/DFB Laser.
• LC Duplex Stecker
• Verlustleistung <2.5W
• Eingebaute digitale Diagnosefunktionen
• Temperaturbereich -5°C bis 70°C
Anwendunden
• SONET OC-192 SR-1, SDH STM I-64.1 bei 9.953Gbps
• 10GBASE-LR/LW 10G Ethernet
• 1200-SM-LL-L 10G Faser Kanal
• 10GE über G.709 bei 11.09Gbps
• OC192 über FEC bei 10.709Gbps
| Feature | Standard | Performance |
|---|---|---|
| Electrostatic Discharge (ESD) to the Electrical Pins | MIL-STD-883E Method 3015.7 | Class 1(>500 V) Isolation with the case |
| Electromagnetic Interference (EMI) | FCC Part 15 Class B | Compatible with standards |
| Laser Eye Safety | FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2 | Compatible with Class I laser product. Compatible with T üV standards |
| Component Recognition | UL and CUL | UL file E317337 |
| Green Products | RoHS | RoHS6 |
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Maximum Supply Voltage 1 | Vcc3 | -0.5 | 4.0 | V |
| Maximum Supply Voltage 2 | Vcc5 | -0.5 | 6.0 | V |
| Storage Temperature | TS | -40 | 85 | °C |
| Case Operating Temperature | TOP | -5 | 70 | °C |
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Operating Temperature | TOP | -5 | 70 | °C |
| Supply Voltage 1 | Vcc3 | 3.13 | 3.45 | V |
| Supply Voltage 2 | Vcc5 | 4.75 | 5.25 | V |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes | |
|---|---|---|---|---|---|---|---|
| Main Supply Voltage | Vcc5 | 5.25 | V | ||||
| Supply Voltage #2 | Vcc3 | 3.45 | V | ||||
| Supply Current – Vcc5 supply | Icc5 | 250 | mA | ||||
| Supply Current – Vcc3 supply | Icc3 | 500 | mA | ||||
| Module total power | P | 2.5 | W | ||||
| Transmitter | Input differential impedance | RIN | 100 | Ω | 1 | ||
| Differential data input swing | Vin, pp | 120 | 820 | mV | |||
| Transmit Disable Voltage | VD | 2.0 | Vcc | V | |||
| Transmit Enable Voltage | VEN | GND | GND+ 0.8 | V | |||
| Transmit Disable Assert Time | 10 | us | |||||
| Receiver | Differential data output swing | Vout, pp | 340 | 650 | 850 | mV | |
| Data output rise time | tr | 38 | ps | 2 | |||
| Data output fall time | tf | 38 | ps | 2 | |||
| LOS Fault | VLOS fault | Vcc – 0.5 | VccHOST | V | 3 | ||
| LOS Normal | VLOS norm | GND | GND+0.5 | V | 3 | ||
| Power Supply Rejection | PSR | 4 |
Notes:
1. After internal AC coupling.
2. 20 – 80 %
3. Loss Of Signal is open collector to be pulled up with a 4.7k – 10kohm resistor to 3.15 – 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
4. Per Section 2.7.1. in the XFP MSA Specification.
| Parameter | Symbol | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|---|
| Transmitter | Optical output Power Optical Wavelength |
P λ |
-6 1290 |
0 1330 |
dBm nm |
|
| Optical Extinction Ratio | ER | 6 | dB | |||
| Sidemode Supression ratio | SSRmin | 30 | dB | |||
| Average Launch power of OFF transmitter | POFF | -30 | dBm | |||
| Tx Jitter | Txj | Compliant with each standard requirements |
||||
| Receiver | Receiver Sensitivity (OMA) at 10.7Gb/s | RSENS | -14.5 | dBm | ||
| Maximum Input Power | PMAX | +0.5 | dBm | |||
| Optical Center Wavelength | λC | 1270 | 1600 | nm | ||
| Receiver Reflectance | Rrx | -14 | dB | |||
| LOS De-Assert | LOSD | -18 | dBm | |||
| LOS Assert | LOSA | -32 | dBm | |||
| LOS Hysteresis | 1 | dB |
| Lieferzeit | 5-10 Werktage |
|---|---|
| Hersteller | tde |
| Systeme | GBIC-, SFP-, XFP-, XENPAK-Transceiver |
| Kategorie | XFP Module |
