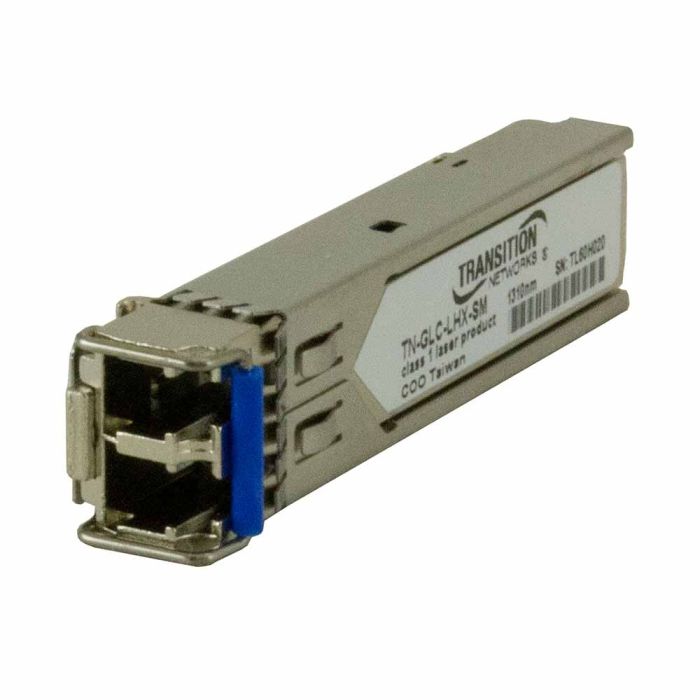

1000Base-LX 1310nm single mode (LC) [40 km/24.9 mi.] Link Budget: 22.0 dB; UL Listed

Standards

• IEEE 802.3

Dimensions

• Width: 0.52” [13 mm]
• Depth: 2.18” [55 mm]
• Height: 0.33” [8 mm]

Power Consumption

• 0.66 Watts

Power Input

• 3.3V

Environment

• Operating: 0°C to 70°C
• Storage: -40°C to 85°C
• TN-GLC-xxx-RGD
  • Operating: -40°C to 85°C
  • Storage: -40°C to 100°C

Certifications

• IEC-60825, FDA 21, CFR 1040.10 and 1040.11; UL Listed (specific SKUs only)

Warranty

• Lifetime
