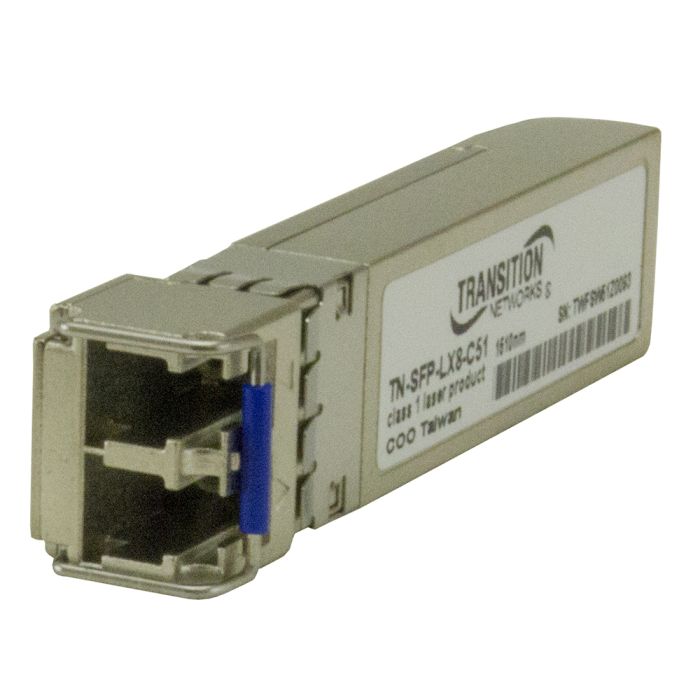

1000Base-LX/Fiber Channel 1x single mode (LC) with DMI 1510nm [80 km/49.7 mi.] Link Budget: 24.0 dB
Article ID
TN-SFP-LX8-C51
Applications include: Gigabit Ethernet Switches and Routers, Fiber Channel Switch Infrastructure, xDSL Applications, and Metro Edge Switching.
Features
- Coarse Wavelength Division Multiplexing (CWDM) ITU Grid Compliant Wavelengths
- Hot-Pluggable SFP Footprint Duplex LC Optical Transceiver
- Digital Diagnostic Function (DMI)
- Compatible with SFP Multi-Sourcing Agreement (MSA)
- Compliant with Fiber Channel 1X SM-LC-L FC-PI
- IEEE 802.3 2003
- IEEE 802.3z
- ANSI X3.297-1997
- -5.5nm < λc < +7.5nm
- 1250Mbps
- 100Mbps
- Width: 0.52” [13 mm]
- Depth: 2.18” [55 mm]
- Height: 0.33” [8 mm]
- 0.66 Watts
- 3.3V
- Operating: 0°C to 70°C
- IEC-60825, FDA 21, CFR 1040.10 and 1040.11
- Lifetime
Standards
Output Wavelength
Typical Data Rate
Minimum Data Rate
Dimensions
Power Consumption
Power Input
Environment
Certifications
Warranty
| Delivery time | 5-10 working days |
|---|---|
| Manufacturer | Lantronix |
| Systems | Lantronix / Transition Networks |
| Category | Optics |
