1000Base-SX 850nm multimode (SC) [62.5/125 μm fiber: 220 m/722 ft.] [50/125 μm fiber: 550 m/1804 ft.] Link Budget: 8.0 dB

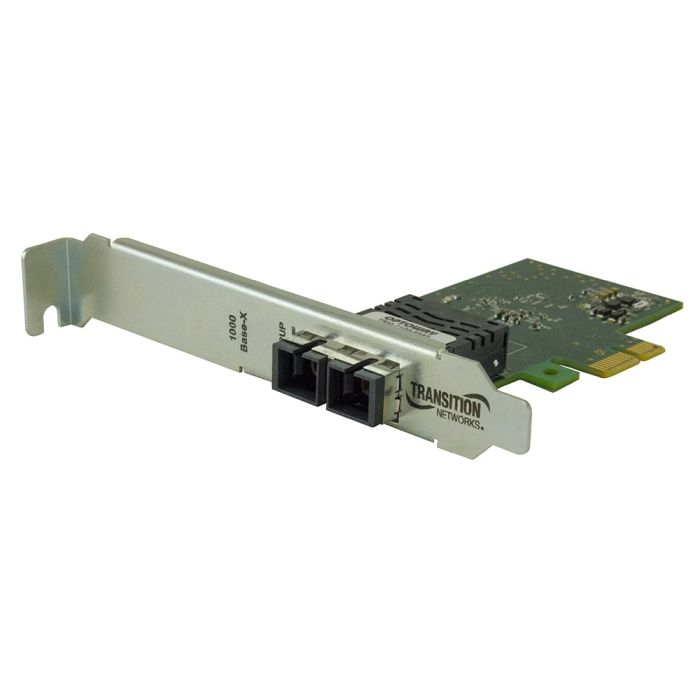

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed.

Features

• Supports PCIe x1 bus
• High bandwidth 1000 Mbps network speed (100/1000 Mbps with Auto-Negotiation for SFP version)
• Supports full-duplex mode
• Supports IEEE 802.3x and IEEE 802.3z Full-Duplex Flow Control
• Compliant with PCIe Rev 2.1 Interface
• IEEE 802.1Q VLAN Support
• Link Aggregation Control Protocol (LACP)
• Link Aggregation Smart Switch
• Smart Load Balancing (SLB) and Failover
• Full Wake-on-LAN Support
• Advanced Power Management (APM) Support
• Advanced Configuration and Power Interface (ACPI) Specification v2.0c
• Magic Packet Wake-up enable
• Jumbo frames support up to 9014 bytes
• IPv4 and IPv6
• IPv4 checksum offloading TCP/UDP
• IPv6 support for IP/TCP and IP/UDP receive checksum offload
• Transmit Segmentation Offloading (TSO)
• Interrupt Handling
• Interrupt Throttling Control
• Legacy and Message Signaling Interrupt/Extension (MSI/MSI-X)
• Intelligent Interrupt Generation
• Low Latency Interrupts
• PXE and UEFI Boot
• RoHS Compliance
• Standard bracket attached, low-profile bracket included
• Supports identification of NIC when multiple cards are installed
