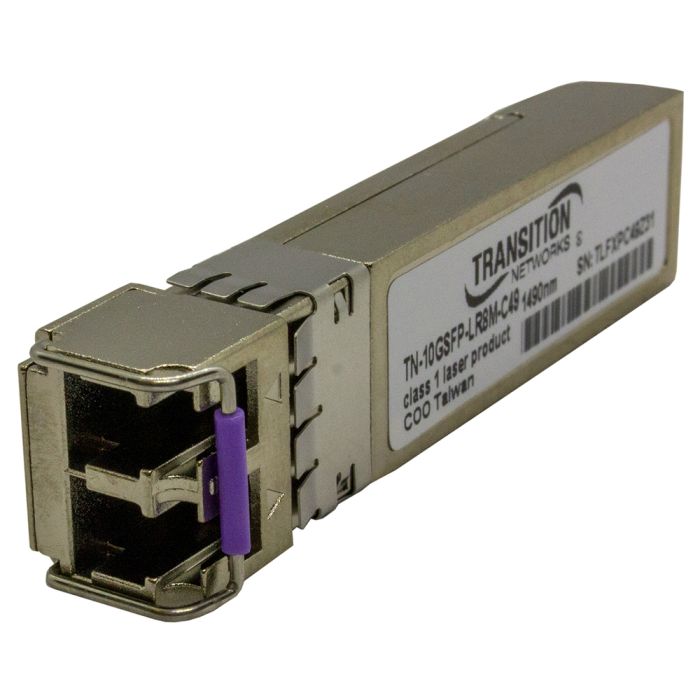

10Gbase-ZR/1000Base-ZX, SFP+ with DMI 1490nm single mode (LC) [80km/49.7 mi.] Link Budget: 22.0 dB
Article ID
TN-10GSFP-LR8M-C49
Features
- SFP+ Optical Transceiver
- 10G Small Form-Factor Pluggable (SFP+) MSA Compliant
- SFF-8472 Digital Diagnostic Function (DMI)
- SFF-8431 and SFF-8432 Compliant
- Maximum link length of 80 km
- Single +3.3 V Power Supply
- Up to 10.5 Gbps bidirectional data links
- RoHS Compliant
- Compliant with 10GBase-ZX
- Compliant with 1000Base-ZR
- IEEE 802.3ae
- IEEE 802.3z
- 10.3 Gbps / 1.25 Gbps
- Width: 0.52” [13 mm]
- Depth: 2.2” [56 mm]
- Height: 0.33” [8 mm]
- +3.3V
- Operating: 0°C to 70°C
- Storage: -40°C to 85°C
- IEC-60825, FAD 21, CFR 1040.10 and 1040.11
- Lifetime
Standards
Data Rates
Dimensions
Power Supply
Environment
Certifications
Warranty
| Delivery time | 5-10 working days |
|---|---|
| Systems | Lantronix / Transition Networks |
| Category | Optics |
| Mediaobjects |
