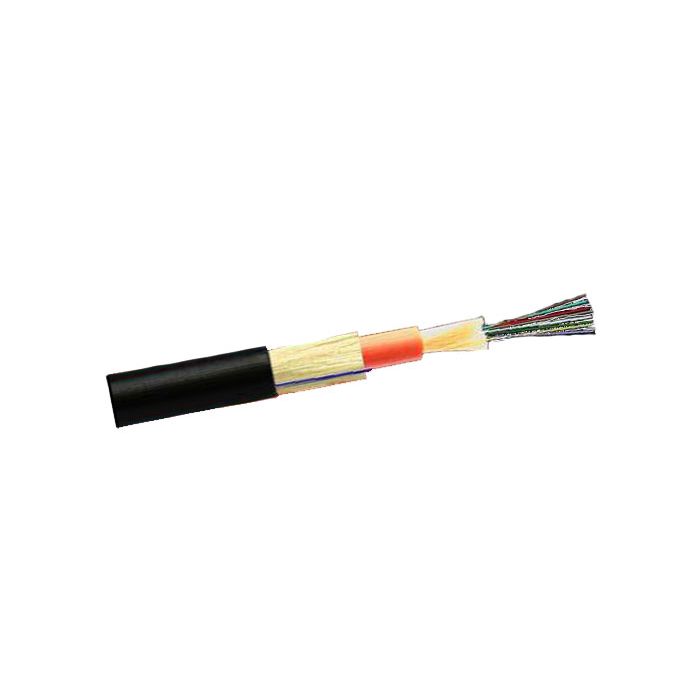

FO cable for mobile use for indoor and outdoor 12E9/125µm G.657.A for MPO IP68 assembly
Article ID
L-A-VZNHZN11Y12E09
Applications
- Indoor / Data Centres
- Suitable for multi fiber connectors (MPO) according to IEC 61754-7-1
Advantages
- Flexible
- Resilient
- Totally dielectric
| Type | A-VZNHZN11Y12E09 |
| SubUnit Ø | 1350 ± 50µm (12 fibers) |
| Strength members | Aramid Yarns |
| Inner jacket | Termoplastic LSZH (Halogen free, low smoke emission, flame retardant compound) |
| Inner jacket Colour | Yellow (RAL 1021) |
| Outer jacket | PU-HFFR (Special Polyurethane, halogen free, flame retardant) |
| Outer jacket Colour | Black |
| Weight | 31 kg/km |
| Outer Ø | 7.0 ± 0.4 mm |
| Tensile Load | 500 N (Permanent)/ 900 N (Installation) |
| Max. crush | 300 N/10cm |
| Temperature Range | -20ºC to +70ºC |
| Min. Bending Radius | 5 x Outer Ø (Operation) / 15 x Outer Ø (Installation) |
| Max. Length | 2000 m |
| Standards |
Environmental and mechanical tests according to EN 187000 and IEC 60794-1-2 |
| Identification Mark |
"t d e – A-V(ZN)H(ZN)11Y 12E09" |
j-fiber FO 9/125µ G.657.A singlemode fiber for IP68 Cable
| Type | Singlemode G.657.A |
| Attenuation Coefficient | 1310 nm ≤ 0.33 to ≤ 0.36 dB/km |
| 1383 nm ≤ 0.31 to ≤ 0.36 dB/km | |
| 1550 nm ≤ 0.19 to ≤ 0.21 dB/km | |
| 1625 nm ≤ 0.20 to ≤ 0.23 dB/km | |
| Attenuation Variance Range | 1285 to 1330 nm ≤ 0.03 dB/km |
| 1530 to 1570 nm ≤ 0.02 dB/km | |
| 1460 to 1625 nm ≤ 0.04 dB/km | |
| Mode Field Diameter | 1310 nm 8.6 ± 0.4 μm |
| 1550 nm 9.8 ± 0.5 μm | |
| Point Discontinuity (tp=1 μs) | 1310 nm ≤ 0.05 dB |
| 1550 nm ≤ 0.05 dB | |
| Attenuation Uniformity | ≤ 0.05 dB |
| Fiber Cut-off Wavelength λc | ≤ 1340 nm |
| Cable Cut-off Wavelength λcc | ≤ 1260 nm |
| MAC (MFD1310/λc) | ≤ 6.8 |
| Zero Dispersion Wavelength λ0 | 1300 ≤ λ0 ≤ 1324 nm |
| Zero Dispersion Slope S0 | ≤ 0.092 ps/nm2⋅km |
| PMDQ Link Design Value | IEC/EN 60794-3 |
| Chromatic Dispersion | 1270 − 1340 nm ≤ 5.00 ps/nm⋅km |
| 1285 − 1330 nm ≤ 3.00 ps/nm⋅km | |
| 1550 nm ≤ 18.00 ps/nm⋅km | |
| Effective Group Index of Refraction | 1310 nm 1.467 |
| 1550 nm 1.467 | |
| Polarization Mode Dispersion Link Value | ≤ 0.06 ps/√km |
| Polarization Mode Dispersion Individual Fiber | ≤ 0.10 ps/√km |
| Cladding Diameter | 125 ± 0.7 μm |
| Core/Clad Concentricity Error | ≤ 0.5 μm |
| Cladding Non-Circularity | ≤ 0.7 % |
| Coating Diameter | 245 ± 5 μm |
| Coating/Clad Concentricity Error | ≤ 10.0 μm |
| Fiber Curl Radius | ≥ 4.0 m |
| Standard Lengths | 2.2 - 50.4 km |
| Colors | Natural |
| Proof Test | ≥ 100 kpsi |
| ≥ 8.8 N | |
| ≥ 0.7 GPa | |
| Dynamic Tensile Strength Unaged Fiber (0.5 m) Median Tensile Strength | ≥ 3.8 GPa |
| Dynamic Tensile Strength Unaged Fiber (0.5 m) 15th Percentile Tensile Strength | ≥ 3.3 GPa |
| Aged Fiber (0.5 m) Median Tensile Strength | ≥ 3.0 GPa |
| Aged Fiber (0.5 m) 15th Percentile Tensile Strength | ≥ 2.8 GPa |
| Dynamic Fatigue Stress Corrosion Parameter nd | ≥ 20 |
| Operating Temperature Range | -60 to +85 °C |
| Average Coating Strip Force (typical) | 1.9 N |
| Macrobending Loss Bend Induced Attenuation | 10 turns, Radius 15 mm 1550 nm ≤ 0.03 dB |
| 10 turns, Radius 15 mm 1625 nm ≤ 0.2 dB | |
| 1 turn, Radius 10 mm 1550 nm ≤ 0.3 dB | |
| 1 turn, Radius 10 mm 1625 nm ≤ 1.0 dB |
| Change of Temperature Attenuation increase, -60°C to+85°C | ≤ 0.05 dB/km |
| Dry Heat Attenuation increase, 30 days at 85°C | ≤ 0.05 dB/km |
| Damp Heat Attenuation increase, 30 days at 85°C/85% R.H. | ≤ 0.05 dB/km |
| Water Immersion Attenuation increase, 30 days in 23°C water | ≤ 0.05 dB/km |
| Delivery time | 5-10 working days |
|---|---|
| Manufacturer | tde |
| Systems | tde - Standard FO Cables |
| Category | FO Cables |
| Mediaobjects | |
| Cable type | LWL Außenkabel 12E09/125µm OS2 |
| Cable color | Schwarz |
| Fiber type | 09/125 µm OS2 |
