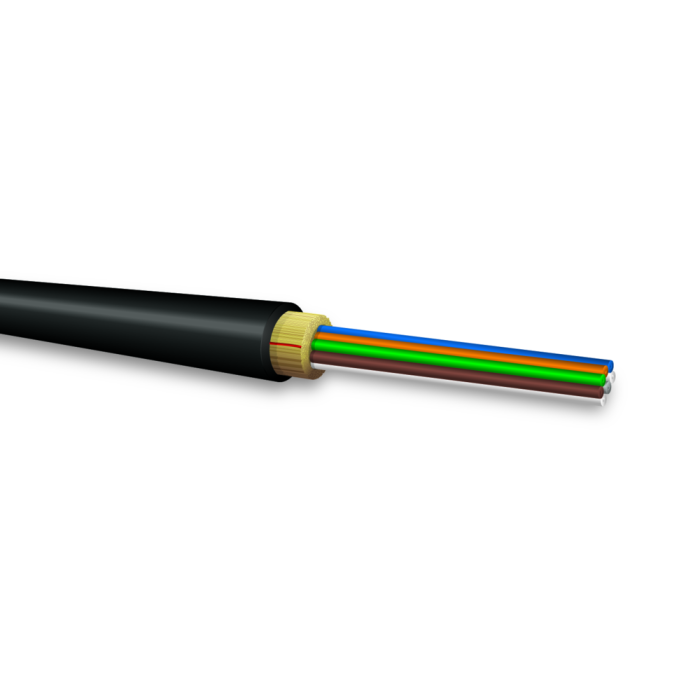

Military D-Series Distribution Mil-Tac Cable 24G62,5/125μ

Article ID
MILTAC-D24G62
Delivery time
5-10 working days
Military D-Series Distribution Mil-Tac Cable 24G62,5/125μ
General Characteristics
Impact Resistance 200 Impacts
Crush Resistance 440 N/cm
Flex Resistance 2.000 Cycles
Operating Temperature -55°C to +85°C
Storage Temperature -70°C to +85°C
Specifications
Fiber Count 24
Diameter 8.5 mm (0.33 in)
Weight 56 kg/km (38 lbs/1.000`)
Installation Tensile Load 3.000 N (670 lbs)
Operational Tensile Load 1.000 N (220 lbs)
Minimum Bend Radius Installation 13.6 cm (5.4 in)
Minimum Bend Radius Operational 6.8 cm (2.7 in)

FO Multimode Fiber OM1 ISO/IEC 11801 62,5/125µ

Type Multimode OM1 ISO/IEC 11801
Core diameter

62.5 µm

Cladding diameter

125 µm

Numeric aperture

0.275
Wavelength 850/1310 nm

Gigabit Ethernet

275/550 m

10-Gigabit Ethernet

33/300 m (1310 CWDM lasers (10GBASE-LX4))

Maximum cabled attenuation

3.5/1.5 dB/km

Minimum Laser EMB bandwidth

200/500 MHz-km

Minimum OFL LED bandwidth

200/500 MHz-km


More Information
Delivery time 5-10 working days
Manufacturer tde
Systems tde - Mil-Tac Cable
Category FO Cables
Mediaobjects
Cable type LWL Mil-Tac Distribution Kabel
Fiber type 62,5/125 µm OM1
Number of fibers 24
