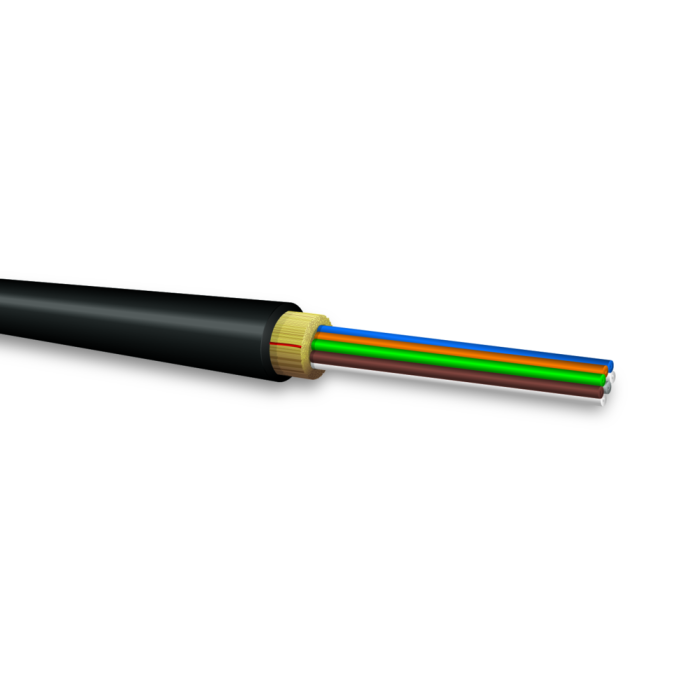

Military D-Series Distribution Mil-Tac Cable 8G50/125μ

Article ID
MILTAC-D08G50
Delivery time
5-10 working days
Military D-Series Distribution Mil-Tac Cable 8G50/125μ
General Characteristics
Impact Resistance 200 Impacts
Crush Resistance 440 N/cm
Flex Resistance 2.000 Cycles
Operating Temperature -55°C to +85°C
Storage Temperature -70°C to +85°C
Specifications
Fiber Count 8
Diameter 6.5 mm (0.26 in)
Weight 37 kg/km (25 lbs/1.000`)
Installation Tensile Load 1.800 N (400 lbs)
Operational Tensile Load 600 N (130 lbs)
Minimum Bend Radius Installation 10.4 cm (4.1 in)
Minimum Bend Radius Operational 5.2 cm (2.0 in)

FO Multimode Fiber OM2 ISO/IEC 11801 50/125µ

Type Multimode OM2 ISO/IEC 11801
Core diameter

50 µm

Cladding diameter

125 µm

Numeric aperture

0.20
Wavelength 850/1310 nm

Gigabit Ethernet

550/550 m

10-Gigabit Ethernet

82/300 m (1310 CWDM lasers (10GBASE-LX4))

Maximum cabled attenuation

3.5/1.5 dB/km

Minimum Laser EMB bandwidth

500/500 MHz-km

Minimum OFL LED bandwidth

500/500 MHz-km


More Information
Delivery time 5-10 working days
Manufacturer tde
Systems tde - Mil-Tac Cable
Category FO Cables
Mediaobjects
Cable type LWL Mil-Tac Distribution Kabel
Fiber type 50/125 µm OM2
Number of fibers 8
