SFP, Ethernet Extender, Server, 1000Base-X, RJ-45, (includes RJ to BNC and RJ to Terminal Block adapters)

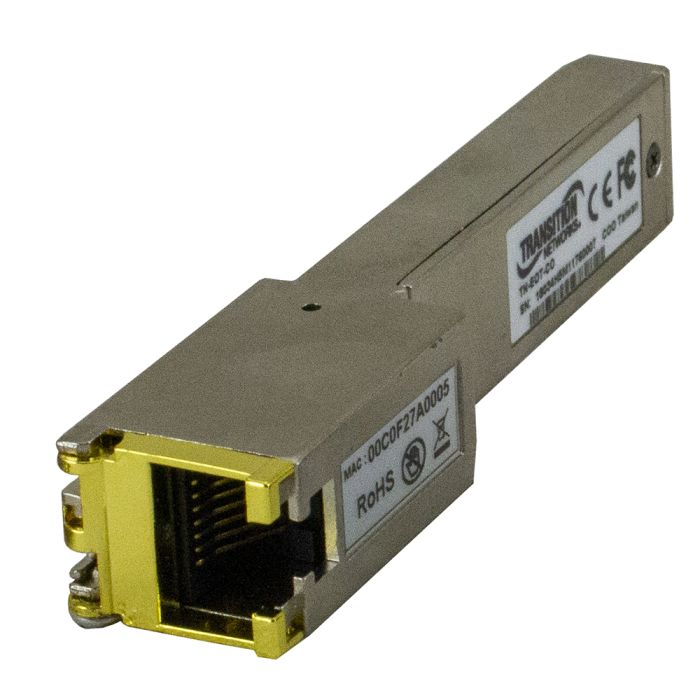

The TN-EOT-xx Series is an Ethernet Extender in a standard SFP form factor, it provides the ability to leverage the existing 2-Wire or Coax cable infrastructure to extend the Ethernet service. It can extend the Ethernet service on 2-wire with distances up to 400 meters at 200Mbps bi-directional data rate or extend Ethernet on Coax cabling with distances up to 500 meters at 300Mbps bi-directional data rate.

The TN-EOT-xx Series complies with MSA standards and can quickly enable any switch or media converter with a Gigabit SFP slot to connect beyond typical Ethernet distances (100 meters).

The TN-EOT-xx Series SFP Ethernet Extenders are plug and play, it doesn’t need any configuration or management from the host device. It can easily make your Switch/Converter adapted to the application with existing 2-wire cable, or Coax with provided BNC to 2-wire adapter, to avoid the cost of rewiring. With long reach coverage, high noise immunity and compact form factor, the TN-EOT-xx is an ideal upgrade for your Enterprise or Industry applications.

Features

• MSA Compliant Gigabit SFP
• Plug and Play
• Based on VDSL2 technology
• Support maximum PHY rate up to 300Mbps per line
• Extended operating temperature -40°C to +75°C
• 2KV ESD Class
• Verified host devices:
  • M/GE-ISW-SFP-01
  • S3290 Series
  • SM8TAT2SA
  • C6120-1040
