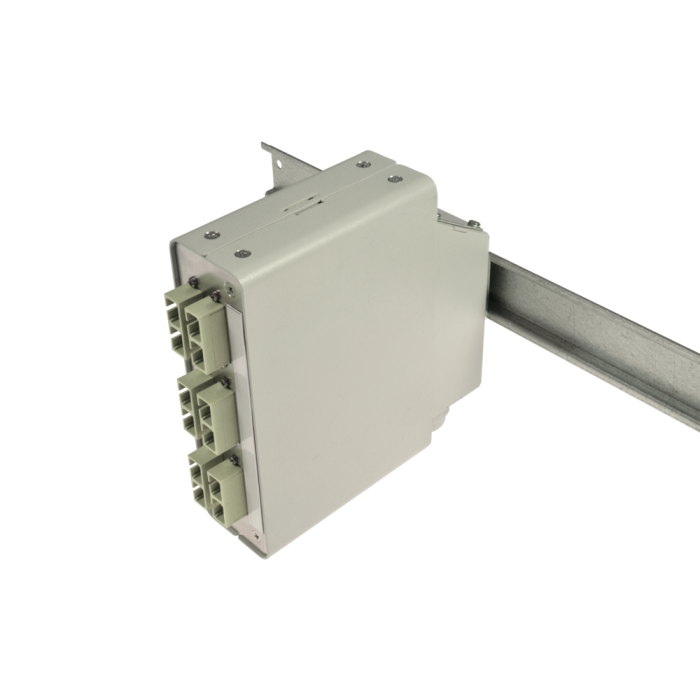

tBL® - DIN rail splice housing MM 3x SC Duplex OM2, splice ready prepared
Article ID
TBL-H06-03SCD50S
Excl. 19% VAT
Delivery time
5-10 working days
tBL® - DIN rail splice housing MM 3x SC Duplex OM2, splice ready prepared
Pre-mounted
3 SC duplex adapters MM
Alternative pre-mounted
TBL-H06-xxSCD50yz (see below)
xx
(01 - 06) quantity of adapters
y
(S)plice ready prepared
z
With(O)ut Crimp Splice protectors
tBL® - DIN rail splice housing, basic housing
Housing
Alu-sheet, 1 mm
Dimensions
141.4 x 141 x 42.8 mm
Colour
powdered in RAL 9005 (black)
tBL® - FO Front panel 3U 8HP 6x SC Duplex for DIN rail splice housing
Front panel
Alu-sheet
incl. labeling strip
Configuration
Attachment up to 6x SC Duplex, 6x LC Quad (6x LCD), 6x ST Duplex adapters
SC Duplex Adapter Zirconia Straight Split with Flange, beige
Type
SC Duplex
Application
Multimode OM2/OM1
Design
One-Piece with flange
Connector style SC Duplex
Color
Beige
Material
Plastic
Sleeve
Zirconia Straight Split
Shutter
--
Manufacturer
tde
FO SC Simplex Connector tde class C for 50 or 62,5/125µ fiber
Connector Type SC Simplex
Housing
Plastic, Beige
Ferrule Zirconia Straight Split, Spring-loaded A xially
Ferrule H ole 126 µ
Mating Cycles 1.000
Operating Temperature -40°C up to +75°C
Strain Relief to 150 N
Manufacturer
tde
Optical performance
Fiber Type Wavelength Insertion loss typ. Insertion loss max. Return loss min.
50/125µ OM2
SC
850 nm
≤ 0.25 dB
0.45 dB
30 dB
62.5/125µ OM1
SC
850 nm
≤ 0.25 dB
0.45 dB
FO Cables
Tight Buffer
Low smoke (IEC 61034 and EN 50268) and free of halogens (LS0H)
Non corrosive after IEC 60754-2 and EN 50267
Flame resistent after IEC 60332-3C and EN 50266-2-4
Completly dry design
Free from metal, no grounding problems and potential differences
Tight Buffer for simple and direct connector mounting
Characteristics
Fiber Count
1 (Tight Buffer)
Core-Ø
0.9 mm
Coreweight
1 kg/km
Min. Bending radius - Installation
30 mm
Min. Bending radius - Operation
30 mm
Removal
1500 mm
Fire load
0.15 MJ/m
Temperature range - Installation
-5 to +50°C
Temperature range - Operation
-20 to +60°C
Temperature range - Transport / Lagerung
-25 to +70°C
Corning FO 50/125µ OM2 multimode fiber
Type
Corning 50/125µ OM2 multimode fiber
Manufacturer
Corning
Optical Specifications
Bandwidth
500 at 850 nm / 500 at 1300 nm
Attenuation
At 850 nm max. ≤ 2.5 dB/km
Numerical Aperture
0.200 ± 0.015
Dimensional Specifications
Core Diameter
50.0 ± 3.0 µm
Cladding Diameter
125.0 ± 2.0 µm
Core-Clad Concentricity
≤ 3.0 µm
Cladding Non-Circularity
< 2.0%
Core Non-Circularity
≤ 5.0%
Coating Diameter
245 ± 5 µm
Coating-Cladding Concentricity
< 12 µm
Environmental Specifications
Enviromental Test Test Condition Induced Attenuation 850 nm and 1300 nm (dB/km)
Temperature Dependence
-60°C to +85°C
≤ 0.20
Temperature Humidity Cycling
-10°C to +85°C and 4% to 98% RH
≤ 0.20
Operating Temperature Range
-60°C to +85°C
Mechanical Specifications
Proof Test
The entire fiber length is subjected to a tensile stress ≥ 100 kpsi (0.7 GN/m²).
Length
Fiber lengths available up to 8.8 km/spool.
Performance Characterizations
Refractive Index Difference
2%
Effective Group Index of Refraction
850 nm: 1.490
Fatigue Resistance Parameter (nd)
20
Coating Strip Force
Dry: 0.6 lbs (2.7N)
Cromatic Dispersion
Zero Dispersion Wavelength (λ0): 1300 nm ≤ λ0 ≤ 1320 nm
tBL® - splice cassette for DIN rail splice housing
Type
splice cassette for DIN rail splice housing
Material
sheet steel
Colour
powdered in RAL 9005 (black)
Configuration
uo to 2x 12 splices
FO Splice holder for 12x crimp splice protectors
Type
FO Splice holder for 12 x Crimp splice protectors
Dimensions
40 x 26 x 6 mm
Material
Bright ABS, similar RAL 1013
FO crimp splice protector
Type
Crimp splice protector
Dimensions
31 x 3 x 1 mm
Cable tie
Type
Cable tie
Dimensions
75 x 2.5 mm
FO SC Duplex Blind stopper
Type
FO Blind stopper
Application
For covering of unused adapter slots
FO cable gland M20, light grey
Type
Cable gland M20
Color
light grey
FO Locknut for cable gland M20, light grey
Type
Locknut for cable gland M20
Color
light grey
tBL® - adapter blind plate for DIN rail splice housing tBL® - mounting clip for DIN rail splice housing tBL® - adapter for intake of PG screwing for DIN rail splice housing
Colour
Alu-zinc
Opening
for 1x M20 (PG13.5)
More Information
Delivery time
5-10 working days
Manufacturer
tde
Systems
tBL® - tde Basic Link (FO Enclosures)
Category
FO DIN rail splice module
Mediaobjects
Connector type (side 1)
SC Duplex, SC Simplex
Fiber type
50/125 µm OM2
Type
SC
Adapter color
Beige
Material
Stahlblech
Patch panel type
tBL® - FO DIN Rail Module
