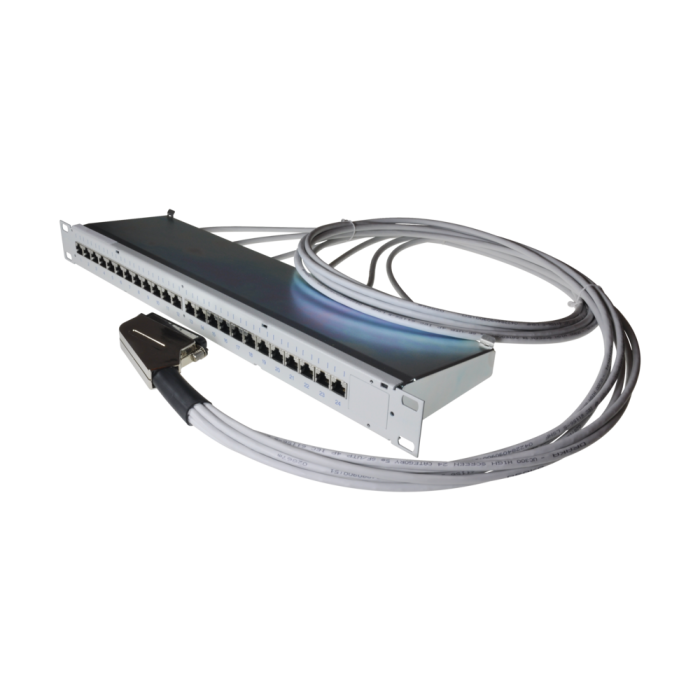

Telco Hydra Panel 24xRJ45Jack/ 1xTelco 45° Male shielded, 1U, Length: xxxx in cm
Article ID
VG-HP-45J-xxxx
Telco Hydra Panel 24xRJ45Jack/ 1xTelco 45° Male shielded, 1U, Length: xxxx in cm
| Application | Cisco VG-Series Analog Gateways |
| Entry | 1x Telco (RJ21) Male, shielded |
| Exit | 24x RJ45 Jack, shielded |
| Length | xxxx in cm |
TP Patch Panel
| Type | RJ45 Jack, shielded |
| Number of Ports | 24 |
| Color | Light Gray (RAL 7035) |
| Dimensions | 19"/1U |
CU Telco Connector 45° with Pins, AWG24-26
| Type | Telco (RJ21) Male, shielded |
| Number of poles | 50 |
| Cable outlet | 45° (skewed) |
| Cover | Full metal |
| Termination technique | Insulation displacement |
| Mounting | screw locking |
| Manufacturer | tde/TE |
Draka - UC300 HS24 Cat.5e SF/UTP 4P (LSHF)
| Conductor | bare copper wire, Ø 0.51 mm (AWG24/1) | |
| Insulation | PE, Ø 1.1 mm | |
| Twisting | 2 cores to the pair | |
| Cable lay up | 4 pairs to the core | |
| Sreen | Al-laminated plastic foil and Copper braid, tinned | |
| Sheath | LSHF (FRNC, LSOH), grey RAL 7035 | |
| Minimum bending radius | Without load | ≥ 25 mm |
| With load | ≥ 50 mm | |
| Temperature range | During operation | -20°C up to +60°C |
| During installation | 0°C up to +50°C |
| Loop resistance | ≤ 190 Ω/km | |
| Resistance unbalance | ≤ 2% | |
| Insulation resistance | (500 V) | ≥ 2000 MΩ*km |
| Mutual capacitance | at 800 Hz | Nom. 48 nF/km |
| Capacitance unbalance | (pair/ground) | ≤ 1500 pF/km |
| Mean characteristic impedance | 100 MHz | 100 ± 5 Ω |
| Nominal velocity of propagation | ca. 67% | |
| Propagation delay | ≤ 535 ns/100 m | |
| Delay skew | ≤ 20 ns/100 m | |
| Test voltage | (DC, 1 min) core/core and core/screen | 1000 V |
| Transfer impedance | at 1 MHz | 12 mΩ /m |
| at 10 MHz | 10 mΩ /m | |
| at 30 MHz | 30 mΩ /m | |
| Coupling attenuation | 80 dB | |
| Segregation classification acc. EN 50174-2 | "d" |
| F MHZ | Attenuation dB/100m | NEXT dB | PS- NEXT dB | ACR dB/100m | PS-ACR dB/100m | ELFEXT dB/100m | PS- ELFEXT dB/100m | Return loss dB |
|---|---|---|---|---|---|---|---|---|
| 1.0 | 1.9 | 71 | 68 | 69.1 | 66.1 | 68 | 65 | 20 |
| 4.0 | 3.7 | 62 | 59 | 58.3 | 55.3 | 56 | 53 | 23 |
| 10.0 | 6.0 | 56 | 53 | 50.0 | 47.0 | 48 | 45 | 25 |
| 16.0 | 7.6 | 53 | 50 | 45.4 | 42.5 | 44 | 41 | 25 |
| 20.0 | 8.5 | 51 | 48 | 42.5 | 39.5 | 42 | 39 | 25 |
| 31.2 | 10.7 | 49 | 46 | 38.3 | 35.3 | 38 | 35 | 24 |
| 62.5 | 15.7 | 44 | 41 | 28.3 | 25.3 | 32 | 29 | 22 |
| 100.0 | 19.8 | 41 | 38 | 21.2 | 18.2 | 28 | 25 | 20 |
| 125.0 | 22.3 | 40 | 37 | 17.7 | 14.7 | 26 | 23 | 19 |
| 155.5 | 24.2 | 38 | 35 | 13.8 | 10.8 | 24 | 21 | |
| 175.0 | 25.7 | 37 | 34 | 11.3 | 8.3 | 23 | 20 | |
| 200.0 | 27.5 | 36 | 33 | 8.5 | 5.5 | 22 | 19 | |
| 250.0 | 29.2 | 35 | 32 | 5.8 | 2.8 | 20 | 17 | |
| 300.0 | 32.0 | 34 | 31 | 2.0 | -1.0 | 16 | 13 |
| Outerdiameter | 6.4 mm |
| Fire load | 433 MJ/km |
| 0.120 kWh/m | |
| Weight | 47 kg/km |
| Copper content | 27 |
| Tensile force | 120 N |
| Delivery time | 5-10 working days |
|---|---|
| Manufacturer | tde |
| Systems | tde - TP cable assemblies |
| Category | TP Telco Cables |
| Mediaobjects | |
| Cable type | CU Verlegekabel |
| Cable color | Grau |
| Performance | Cat.5e |
