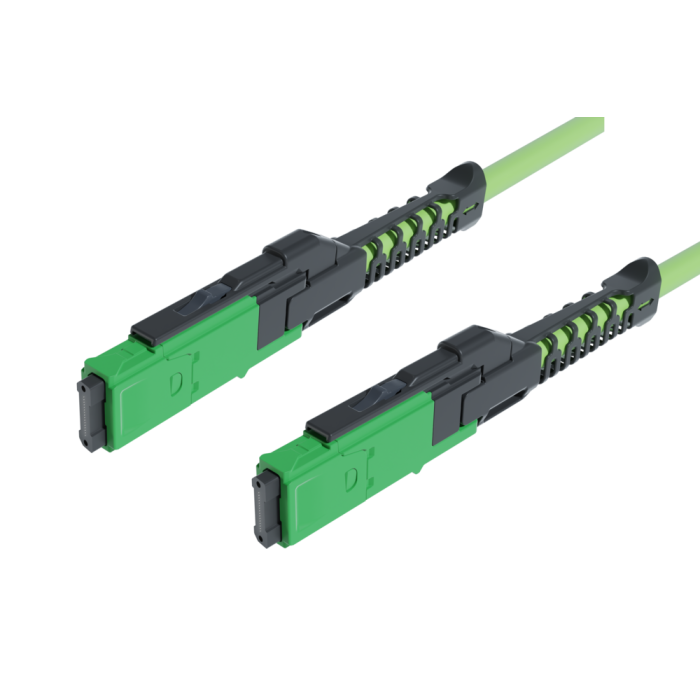

tML® 24+ - FO Patch cord both sides 1x 24F MMC Female 24G50/125µ OM5, Type A, Length: xxx in m

Article ID

TML-MM2/MM2-50I24G5Axxx

Excl. 19% VAT

Delivery time

5-10 working days

Cable length

Qty

tML® 24+ - FO Patch cord both sides 1x 24F MMC Female 24G50/125µ OM5, Type A, Length: xxx in m

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

The end faces of the connectors are optimized by means of Lasercleaving and machine polish. The MPO/MTP^®plug has a defined fiber height of 1 - 3.5µ. The max. adjacent fiber height difference is 0.2µm and for all fibers 0.3µm.

Cable	Round cable 3.6 mm, loose tube, LSOH, limegreen
Connectors	MMC Push Pull (limegreen)
Pin out	Type A
Tests	Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived
	QS-Managementsystem ISO 9001, ISO 14001 and TL 9000

FO premium connector MMC24 APC without pins tde class B for MM 50/125µ OM5

Connector
Type	MMC APC Female (green)
Ferrule	24x MM Elite
Boot colour	Red
Manufacturer	tde/US Conec

Optical Performance
Fiber	Type	Wavelength	Insertion loss typ.	Insertion loss max.	Return loss min.
50/125µ OM5	MMC APC	850 nm	≤ 0.11 dB	0.25 dB	35 dB

FO Cables

Loose tube
Loose tube	unfilled (FRNC)
Wall thickness PVC-tube	0.35 mm – 0.40 mm
Outer diameter	2.6 mm with 24 optical fibres
Tube colour	green
Colour code fibres (1-12)	red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink
Colour code fibres (13-24)	red, green, blue, yellow, white, grey, brown, violet, turquoise, transparent, orange, pink (always with black ring marking, except transparent)

Strain relief elements
Strain relief elements	Aramid
Strength members	Fiberglass-reinforced plastic (FRP)

Outer jacket
Outer jacket	Halogen-free and flame-retardant material (FRNC)
Wall thickness	approx. 0.4 mm
Outer diameter	approx. 3.8 mm
Colour	lime green
Inkjet - marking (black)	t d e – IVH24G50–MPO-OM5 LSZH (F.RoHS)

Mechanical characteristics
Min. bending radius fixed (static) acc. IEC 60794-1-2 E11A	10 x outside diameter
Min. bending radius during assembly (dynamic), with additional tensile strain acc. IEC 60794-1-2 E6	15 x outside diameter
Max. tensile force acc. IEC 60794-1-2 E1, short term	300 N
Max. crush resistance acc. IEC 60794-1-2 E3, long term	150 N/dm
Max. crush resistance acc. IEC 60794-1-2 E3, short term	1500 N/dm
Cable weight	20.0 kg/km

Thermal characteristics
Transport and storage	-40°C to +80°C
Verlegung	-20°C to +50°C
In use acc. IEC 60794-1-2 F1	-40°C to +80°C

Fire performance
Cable is flame-retardant	acc. to IEC 60332-1-2
Smoke density	acc. to IEC 61034
Halogen-free	acc. to IEC 60754-1
Acidity of the combustion gases	acc. to IEC 60754-2
Fire load	0.26 MJ/m

Chemical characteristics	No resistance to oil, petrol, acid and leach
Standardisation	IEC 60794-2

Corning FO ClearCurve® 50/125µ OM5 multimode fiber

Type	Corning ClearCurve^®50/125µ OM5 multimode fiber
Design	Optical fibre G50/125 μm (conform to IEC 60793-2-10 type A1a.4b) with optical core 50 μm +/- 2.5 μm diameter and optical cladding 125 μm +/- 1 μm diameter

Geometrical properties
Core concentricity error	< 5 %
Coating concentricity error	< 1 %
Core coating eccentricity	< 1.5 μm
Eccentricity of coating	< 12 μm
Screen test	≥ 0.7 GPa (100 kpsi)

Transmission characteristics
Attenuation, maximum values 850 nm (cabled fibre)	2.5 dB/km
Attenuation, maximum values 953 nm (cabled fibre)	1.8 dB/km
Attenuation, maximum values 1300 nm (cabled fibre)	0.7 dB/km
Attenuation, maximum values 850 nm (uncabled fibre)	2.34 dB/km
Attenuation, maximum values 953 nm (uncabled fibre)	1.7 dB/km
Attenuation, maximum values 1300 nm (uncabled fibre)	0.64 dB/km
Macrobending, induced attenuation 100 turns, 37.5 mm	≤ 0.5 dB (at 850 nm)
Macrobending, induced attenuation 100 turns, 37.5 mm	≤ 0.5 dB (at 1300 nm)
Macrobending, induced attenuation 2 turns, 15 mm	≤ 0.1 dB (at 850 nm)
Macrobending, induced attenuation 2 turns, 15 mm	≤ 0.3 dB (at 1300 nm)
Macrobending, induced attenuation 2 turns, 7.5 mm	≤ 0.3 dB (at 850 nm)
Macrobending, induced attenuation 2 turns, 7.5 mm	≤ 0.5 dB (at 1300 nm)
Bandwidth (OFL), minimum values 850 nm	3500 MHz x km
Bandwidth (OFL), minimum values 953 nm	1850 MHz x km
Bandwidth (OFL), minimum values 1300 nm	500 MHz x km
Effective modal Bandwidth-length product min. 850 nm	4700 MHz x km
Effective modal Bandwidth-length product min. 953 nm	2470 MHz x km
Numerical aperture	0.200 +/- 0.015
Effective group of refraction 850 nm	1.482
Effective group of refraction 1300 nm	1.477

More Information

More Information
Delivery time	5-10 working days
Manufacturer	tde
Mediaobjects
Cable type	LWL Innenkabel
Fiber type	50/125 µm OM5
Number of fibers	24
