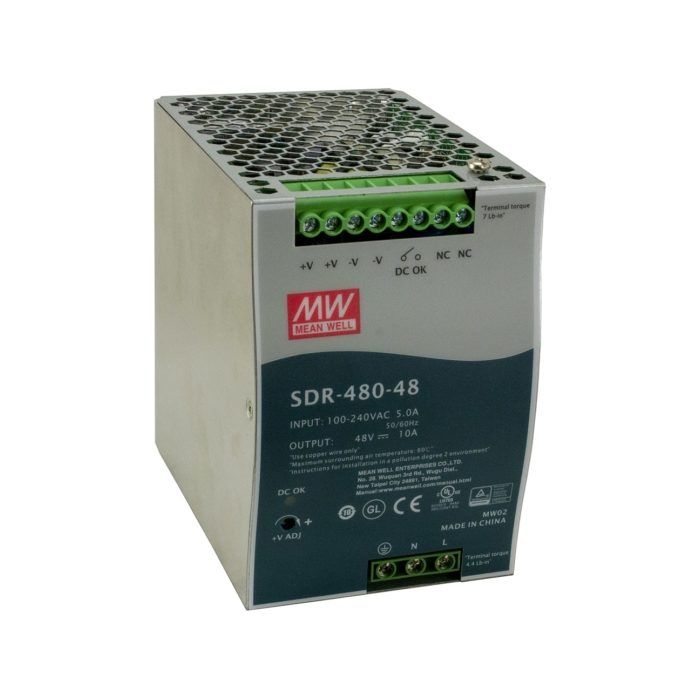

Input 90-264 VAC, 127-370 VDC Output: 48 ~ 55 VDC, 10A, 480 Watts

Article ID
25160
Excl. 19% VAT
Delivery time
5-10 working days

Input 90-264 VAC, 127-370 VDC
Output: 48 ~ 55 VDC, 10A, 480 Watts

Features

  • 94% High Efficiency
  • 150% Peak Load
  • Protected against:
    • Short Circuit
    • Overload
    • Over Voltage
    • Overheating
  • Convection air cooling
  • DIN rail mountable
  • UL 508 approved
  • Full load burn in test
  • RoHS compliant

    Output

    • Output Voltage 48VDC
    • Current Rating 5A
    • Power Rating: 480 Watts
    • Ripple & Noise Max: 120mVp-p
    • Voltage Range 48~55VDC
    • Voltage Tolerance ±1.0%
    • Line Regulation ±0.5%
    • Load Regulation ±1.0%
    • Setup, Rise Time 300ms, 60ms
    • Hold Up Time 20ms

    Input

    Protection

    • Overload: 110~160%
    • Overvoltage: 57.6~64.8V

    Dimensions

    • Width: 3.37” [85.5 mm]
    • Depth: 5.06” [128.5 mm]
    • Height: 5.99” [152.2 mm]

    Environment

    • Operating: -25°C to +70°C
    • Storage: -40°C to +85°C
    • Humidity: 20% to 90% (non-condensing)

    Weight

    • 3.53 lbs. [1.6 kg]

    MTBF

    • 112.9 Khrs

    Certifications

    • Safety: UL508, TUV EN60950-1;
    • IEC60068-2-6 (Vibration)
    • EMC Emission: EN55011, EN5032(CISPR32), EN61204-3 Class B, EN61000-3-2, EN61000-3-3;
    • EMC Immunity: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN55024, EN61000-6-2, EN50082-2, EN61204-3, SEMI F47, GL Approved

    Warranty

    • 5 Year
