Military B-Series Breakout Mil-Tac Cable 12G50/125μ

Article ID
MILTAC-B12G50
Delivery time
5-10 working days

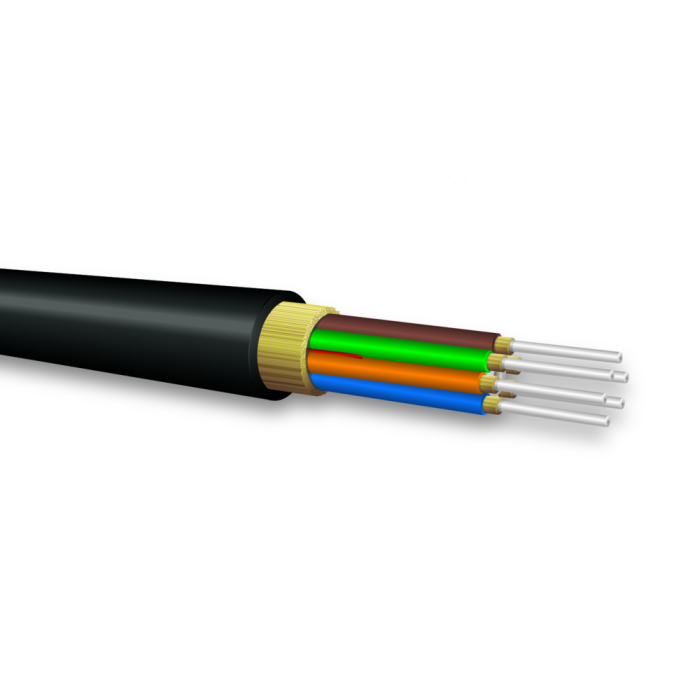

Military B-Series Breakout Mil-Tac Cable 12G50/125μ
General Characteristics
Impact Resistance 200 Impacts
Crush Resistance 440 N/cm
Flex Resistance 2.000 Cycles
Operating Temperature -55°C to +85°C
Storage Temperature -70°C to +85°C
Specifications
Fiber Count 12
Diameter 11.0 mm (0.43 in)
Weight 88 kg/km (59 lbs/1.000`)
Installation Tensile Load 4.800 N (1.080 lbs)
Operational Tensile Load 1.200 N (270 lbs)
Minimum Bend Radius Installation 17.6 cm (6.9 in)
Minimum Bend Radius Operational 8.8 cm (3.5 in)

FO Multimode Fiber OM2 ISO/IEC 11801 50/125µ

Type Multimode OM2 ISO/IEC 11801
Core diameter

50 µm

Cladding diameter

125 µm

Numeric aperture

0.20
Wavelength 850/1310 nm

Gigabit Ethernet

550/550 m

10-Gigabit Ethernet

82/300 m (1310 CWDM lasers (10GBASE-LX4))

Maximum cabled attenuation

3.5/1.5 dB/km

Minimum Laser EMB bandwidth

500/500 MHz-km

Minimum OFL LED bandwidth

500/500 MHz-km


More Information
Delivery time 5-10 working days
Manufacturer tde
Systems tde - Mil-Tac Cable
Category FO Cables
Mediaobjects
Cable type LWL Mil-Tac Breakout Kabel
Fiber type 50/125 µm OM2
Number of fibers 12
