(1) RS232/422/485 DB9 port + (2) 10/100Base-TX RJ-45

Article ID
SDSTX3110-121S-LRT
Excl. 19% VAT
Delivery time
5-10 working days

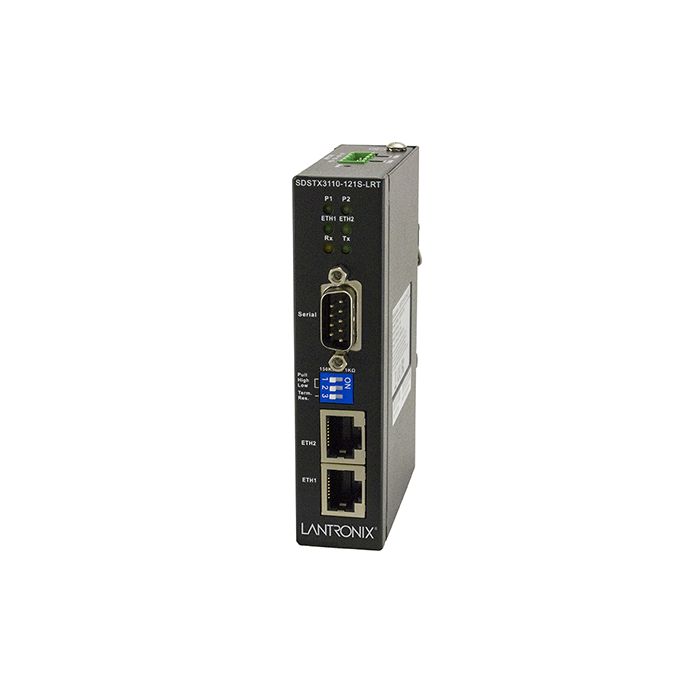

Lantronix hardened serial device server provides the ability to communicate secured serial data across an Ethernet network. The SDSTX3110-121S-LRT contains two 10/100 Fast Ethernet ports that can be configured to communicate to one or multiple redundant servers. Security of the data transmission is assured through HTTPS, SSH, and SSL data encryption.

The SDSTX3110-121S-LRT comes with COM port redirector software enabling communication of serial data to a virtual COM port on a server, or can be used in pairs to provide serial tunneling across the Ethernet network. The SDSTX3110-121S-LRT is a hardened device designed to operate in the harshest environments. It has a slim IP30 enclosure that can fit into space-constraining cabinets. The device accepts 12-48VDC power input and it is also certified to operate in temperatures of -40°C to +70°C.

Features

  • Operating Modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
  • Security: SSL data encryption; secured management by HTTPS and SSH IP Access: IP White List
  • Event Warning by SYSLOG, Email, SNMP trap
  • Extended operating temperature (-40°C to 70°C)
  • Various Windows O.S. supported: Windows NT/2000/ XP/ 2003/VISTA(32/64bit)/Windows 7(32/64bit) / Windows 8

    Standards

    • IEEE 802.3™
    • IEEE 802.3u

    Protocols

    • ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL

    Serial Ports (1)

    • DB9M

    Serial Protocols

    • RS-232/422/485 (2 and 4 wire)

    Serial Baud Rates

    • 110bps to 921Kbps

    Serial Data Bits

    • 7, 8

    Serial Parity

    • Odd, Even, None, Space

    Serial Stop Bits

    • 1, 1.5, 2

    Serial RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
    • RS-422 Tx+. Tx-, Rx+, Rx-

    Serial RS-485

    • (4 wire) Tx+. Tx-, Rx+, Rx-

    Serial RS-485

    • (2 Wire) Data+, Data-

    Serial Flow Control

    • XON/XOFF, RTS/CST, DTR/DSR

    Status LEDs

    • Power, Ethernet Port Link/Act, Serial TX/RX

    Dimensions

    • Width: 1.02″ [26 mm]
    • Depth: 2.95” [75 mm]
    • Height: 4.33” [110 mm]

    Power Consumption

    • 1.44 Watts

    Power Input

    • 12 ~ 48 VDC; redundant inputs

    Ingress Protection

    • IP30

    Environment

    • Operating: -40°C to 70°C
    • Storage: -40°C to 85°C
    • Humidity: 5% to 95% (non-condensing)

    Weight

    • 0.5 lb. [0.23 kg]

    MTBF

    • 1,095,428.6101 hours

    Certifications

    • FCC Part 15, CISPR (EN55022) class A, EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11, IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
    • Safety: EN60950-1

    Warranty

    • 5 Years
