Military D-Series Distribution Mil-Tac Cable 2E9/125μ

Article ID
MILTAC-D02E09
Delivery time
5-10 working days

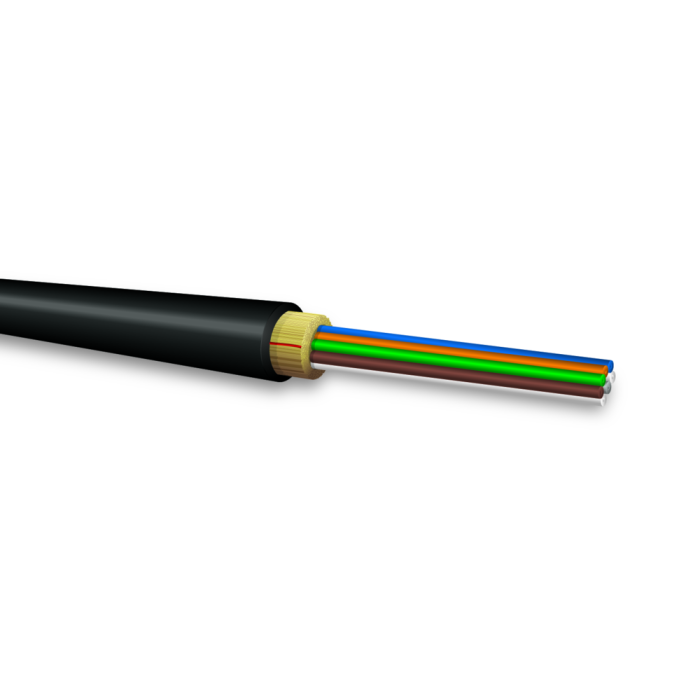

Military D-Series Distribution Mil-Tac Cable 2E9/125μ
General Characteristics
Impact Resistance 200 Impacts
Crush Resistance 440 N/cm
Flex Resistance 2.000 Cycles
Operating Temperature -55°C to +85°C
Storage Temperature -70°C to +85°C
Specifications
Fiber Count 2
Diameter 5.0 mm (0.20 in)
Weight 21 kg/km (14 lbs/1.000`)
Installation Tensile Load 1.800 N (400 lbs)
Operational Tensile Load 600 N (130 lbs)
Minimum Bend Radius Installation 8.0 cm (3.1 in)
Minimum Bend Radius Operational 4.0 cm (1.6 in)

FO Singlemode Fiber ITU-T G.652.A 9/125µ

Type Singlemode ITU-T G.652.A
Core diameter

9 µm (typical mode field diameter at 1310 nm)

Cladding diameter

125 µm

Numeric aperture

-
Wavelength 1310/1550 nm

Gigabit Ethernet

5 km (10 km für 1310 nm 1000BASE-LH, und 5 km für 1310 nm 1000BASE-LR)

10-Gigabit Ethernet

10 km (10 km für 1310 nm 10GBASE-LR, und 40 km für 1550 nm 10GBASE-ER)

Maximum cabled attenuation

0.5/0.5 dB/km

Minimum Laser EMB bandwidth

-

Minimum OFL LED bandwidth

-

More Information
Delivery time 5-10 working days
Manufacturer tde
Systems tde - Mil-Tac Cable
Category FO Cables
Mediaobjects
Cable type LWL Mil-Tac Distribution Kabel
Fiber type 09/125 µm OS2
Number of fibers 2
