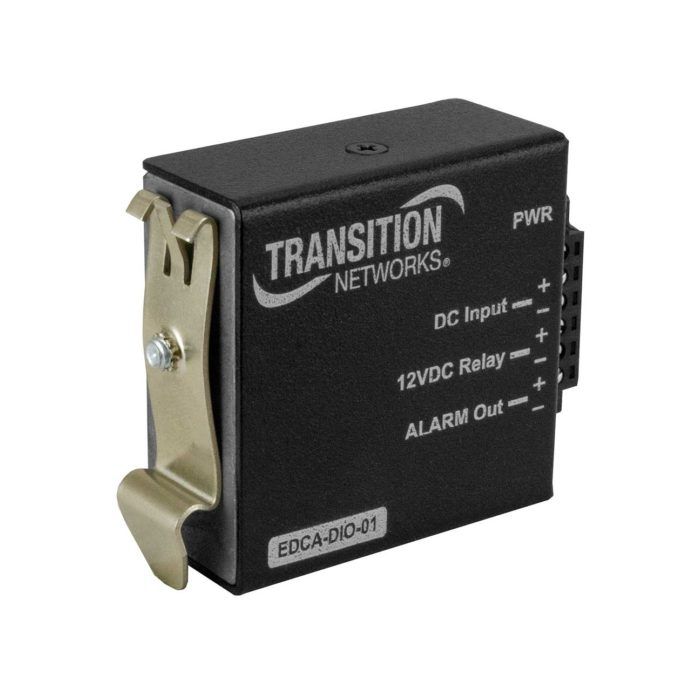

Enclosure Door Contact Alarm
Article ID
EDCA-DIO-01
Features
- Wide input of 20 – 60 VDC
- Input is fused and reverse polarity protected
- Standard DIN Rail Clip is included
- A wall mount bracket is also available (sold separately)
- Will work with the cabinet door contact switch provided by your enclosure manufacturer
- A third party magnetic enclosure door contact switch is available (sold separately)
- Compatible for use with these Transition Hardened Ethernet Switches
- SISPM1040-362-LRT
- SISPM1040-384-LRT-C
- SISPM1040-582-LRT
- 6-pin Terminal Block
- PWR (Power): On = Power
- 1.2 W (100mA at 12V out max.)
- 20 – 60 VDC
- 12 VDC +/- 10%
- Width: 2” [50.8 mm]
- Depth: 0.88” [22.23 mm]
- Height: 2” [50.8 mm]
- 0.2 lbs. [0.09 kg]
- 9,950,896 hours
- Operating:-25°C to +75°C
- Storage: -40°C to +85°C
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 – 10,000 ft.
- EN55032
- EN55024
- CE Mark
- Lifetime
Connector
Status LED
Power Consumption
Power Input
Power Output
Dimensions
Weight
MTBF
Environment
Certifications
Warranty
| Delivery time | 5-10 working days |
|---|---|
| Systems | Lantronix / Transition Networks |
| Category | Network Switches |
